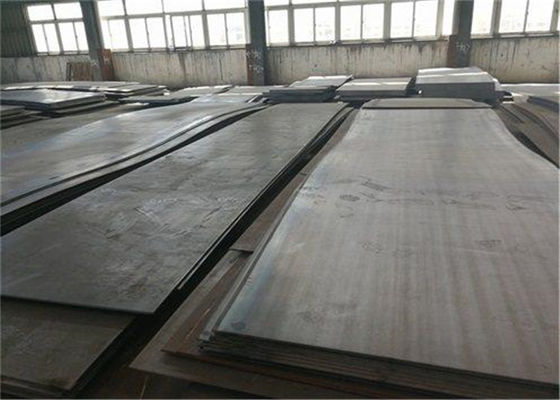

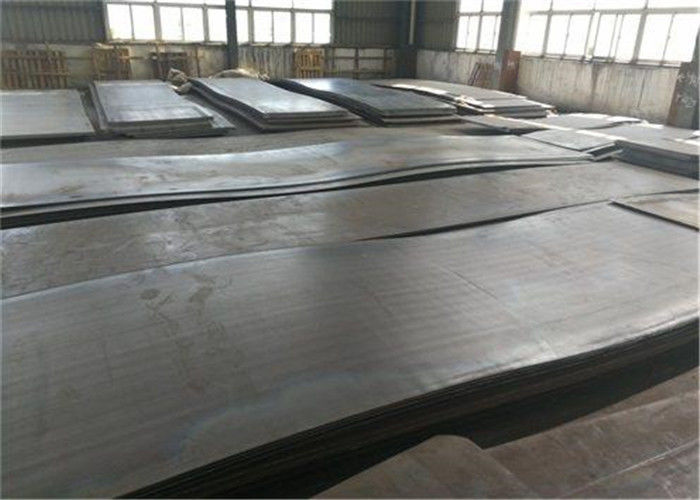

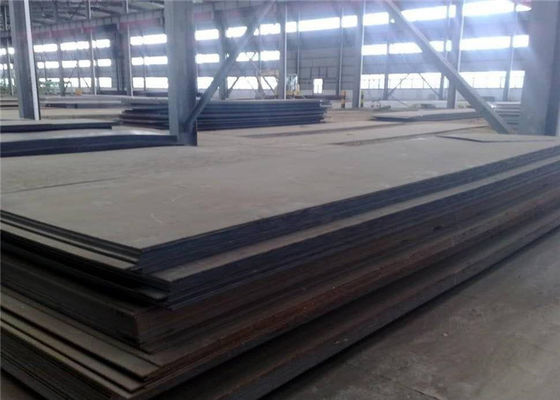

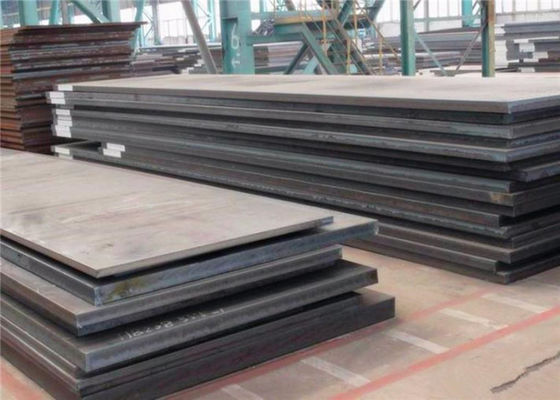

Hot Rolled 6mm Pressure Vessel Boiler Steel Plate Untuk Industri Kimia
Product Details
| Nama Produk: | Plat Baja Paduan | Aplikasi: | Ketel |
|---|---|---|---|
| Permukaan: | Skin Pass | Standar: | AISI, ASTM, BS, DIN, GB, JIS, Lainnya, ASTM |
| Teknik: | Hot Rolled, Cold Rolled, Hardfacing / Permukaan las / cladding | Pengobatan permukaan: | Dilapisi, Galvanis, Lainnya |
| Menyoroti |
Pelat baja boiler Hot Rolled,pelat baja boiler bejana tekan,pelat baja bejana tekan 6mm |
||
Product Description
Hot Rolled 6mm Boiler Alloy Steel Sheet Plat Boiler Pressure Vessel Kekuatan Tinggi
Banyak digunakan dalam perminyakan, industri kimia, pembangkit listrik, boiler dan industri lainnya.Ini digunakan dalam membuat reaktor, penukar panas, pemisah, tangki bola, tangki gas, tangki gas cair, cangkang tekanan reaktor nuklir, drum boiler, silinder gas minyak cair, pipa air bertekanan tinggi dari pembangkit listrik tenaga air, cangkang turbin dan peralatan dan komponen lainnya .
informasi produkdari pelat baja paduan boiler
Continuous casting slab atau primary rolling slab digunakan sebagai bahan baku, yang dipanaskan dengan stepping furnace, dihilangkan keraknya dengan air bertekanan tinggi dan kemudian masuk ke pabrik roughing.Bahan kasar melewati kepala pemotongan, ekor dan kemudian ke pabrik finishing untuk penggulungan yang dikendalikan komputer.Setelah penggulungan terakhir, ia melewati pendinginan laminar (laju pendinginan yang dikendalikan komputer) dan koil coiler menjadi kumparan rambut lurus.Kepala dan ekor gulungan rambut lurus sering menunjukkan bentuk lidah dan ekor ikan, ketebalan, akurasi lebar yang buruk, tepi sering ada bentuk gelombang, tepi terlipat, bentuk menara dan cacat lainnya.Bobot kumparannya berat, diameter dalam kumparan baja adalah 760mm.
Komposisi kimiadari pelat baja paduan boiler
| Kelas | C maks | Mn maks | S maks |
P. maks |
Si | Kr | Cu | Mo |
| A204 Gr A | 0.18 | 0,90 | 0,035 | 0,035 | 0,15-0,40 | - | - | - |
| A204 Gr B | 0.20 | 0,90 | 0,035 | 0,035 | 0,15-0,40 | - | - | - |
| A204 Gr C | 0.23 | 0,90 | 0,035 | 0,035 | 0,15-0,40 | - | - | - |
Peralatan mekanisdari pelat baja paduan boiler
| Kelas | Daya tarik (Mpa) |
Kekuatan Hasil (Mpa) |
Pemanjangan Di 100-150 mm (%) |
Pemanjangan Di 16 mm (%) |
| A204 | 440-590 | 220-275 | 19 |
24 |
