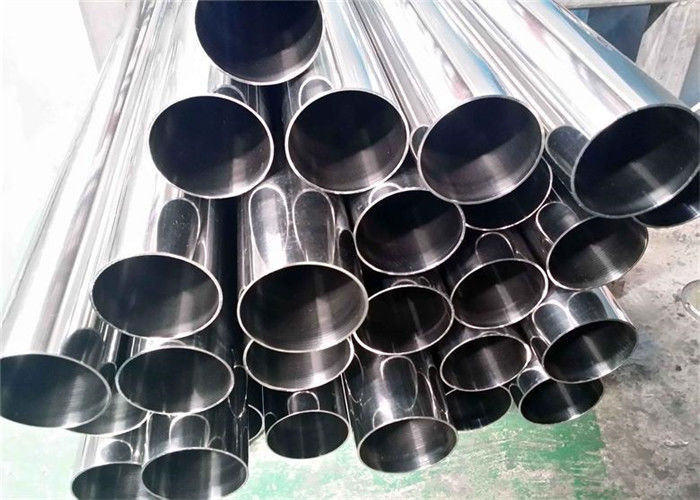

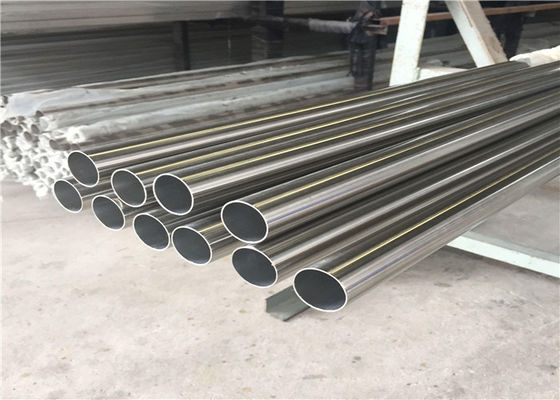

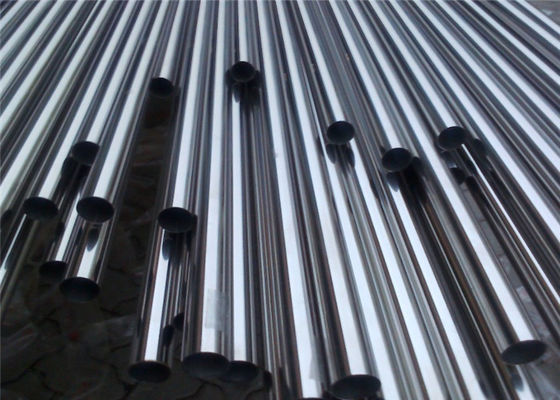

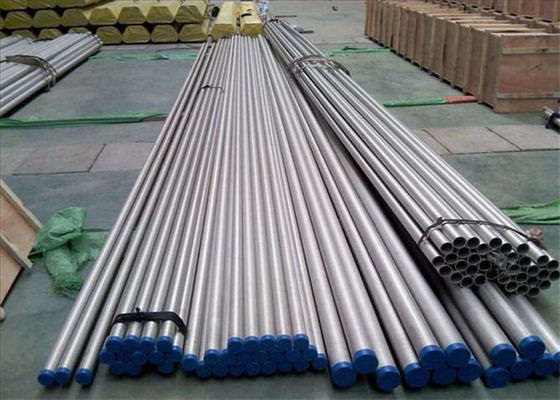

904L 6.00mm Tabung Stainless Mulus Untuk Penukar Panas
Product Details
| Bahan: | UNS NO8904 / 904L | Selesai: | Annealed & Acar / Bright Annealed |
|---|---|---|---|
| Aplikasi: | boiler & penukar panas, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan flui | Bentuk: | Bulat mulus |
| OD: | 6.00mm hingga 101.6mm | WT: | 0,5mm hingga 8mm |
| Menyoroti |
Tabung stainless mulus 904L,tabung stainless mulus 6.00mm,pipa mulus stainless steel 904L |
||
Product Description
ASTM 304L 304 Pipa Baja Pipa Stainless Steel Mulus / Tabung Stainless Steeaku
Produksi
Kelas Bahan:
| Standar Amerika |
Baja Austenitik: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Baja Dupleks: S32101, S32205, S31803, S32304, S32750, S32760 Paduan Nikel: UNS NO8800, NO8811, NO8825, NO8810, NO718, NO690, NO6625, NO6600, NO4400 Lainnya:TP405,TP409, TP410, TP430, TP439,... |
| Standar Eropa | 1.4301.1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1,4462, 1,4362, 1,4410, 1.4501 |
| Standar Rusia |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х1812,121810,12Х |
| Ukuran Tabung untuk Penukar Panas & Kondensor & Boiler | |||||||||
| Diameter luar | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Tebal Dinding mm Wall | |||||||||
| 0,508 | 0,71 | 0,89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | inci | Berat kg/m | |||||||
| 6.35 | 1/4 | 0,081 | 0.109 | 0,133 | 0,174 | 0.212 | |||
| 9.53 | 3/8 | 0,126 | 0,157 | 0.193 | 0.257 | 0,356 | 0,429 | ||
| 12,7 | 1/2 | 0.214 | 0,26326 | 0,356 | 0,457 | 0.612 | 0,754 | ||
| 15.88 | 5/8 | 0,2712 | 0,334 | 0,455 | 0,588 | 0,796 | 0.995 | ||
| 19.05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1.236 | ||
| 25.4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0,667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2,729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
| Bentuk Tabung: Lurus & U-tikungan & Bersirip & Melingkar | |||||||||
| Tabung Baja Tahan Karat: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. | |||||||||
| Tabung Baja Karbon & Paduan: A/SA178, A/SA179, A/SA192, A/SA209, A/SA210, A/SA213 | |||||||||
Beberapa pengujian kualitas yang kami lakukan antara lain:
| Uji Korosi | Dilakukan hanya jika diminta secara khusus oleh klien |
| Analisis kimia | Tes dilakukan sesuai standar kualitas yang dipersyaratkan |
| Pengujian Destruktif / Mekanik | Tarik |kekerasan |Meratakan |Suar |Penghubung jalur pipa |
| Reverse-bend dan Re.tes datar | Dilakukan dengan kepatuhan penuh terhadap standar yang relevan & norma ASTM A-450 dan A-530, yang memastikan ekspansi, pengelasan & penggunaan bebas masalah di ujung pelanggan |
| Pengujian Arus Eddy | Dilakukan untuk mendeteksi homogenitas di bawah permukaan dengan menggunakan Digital Flaw-mark Testing System |
| Pengujian Hidrostatik | Pengujian Hidrostatik 100% dilakukan sesuai dengan norma ASTM-A 450 untuk memeriksa kebocoran tabung, dan tekanan terbesar yang dapat kami dukung 20Mpa/7s. |
| Uji Tekanan Udara di Bawah | Untuk memeriksa bukti kebocoran udara |
| Inspeksi visual | Setelah pasif, setiap panjang tabung & pipa diperiksa secara visual oleh staf terlatih untuk mendeteksi cacat permukaan & ketidaksempurnaan lainnya |
Product Highlights
ASTM 304L 304 Pipa Baja Pipa Stainless Steel Mulus / Tabung Stainless Steeaku Produksi Fitur: A) Kinerja biaya tinggi; B) pengiriman yang cepat; C) Pembuatan sesuai dengan ukuran dan desain pelanggan; D) Layanan terbaik; E) Sertifikasi: ISO9001-2005 Bahan: 200 seri: 201, 202 300 seri: 301, 302, 303, ...
