ASTM A106 Seamless Carbon Steel Boiler Steel Tube Untuk Suhu Tinggi
Product Details
| Standar: | JIS, AISI, ASTM, GB, DIN, EN | Bahan: | TP316 |
|---|---|---|---|
| Spesifikasi: | Tabung Baja Tahan Karat 321 Tabung Baja Tahan Karat 321H | Paket: | Paket Standar Layak Laut |
| Pengolahan: | Bending, Welding, Decoiling, Punching, Cutting, Moulding | Bentuk: | Bulat |
| Menyoroti |
ASTM A106 Boiler Steel Tube,ASTM A106 Carbon Steel Tube,ASTM A106 Cold Drawn Tube |
||
Product Description

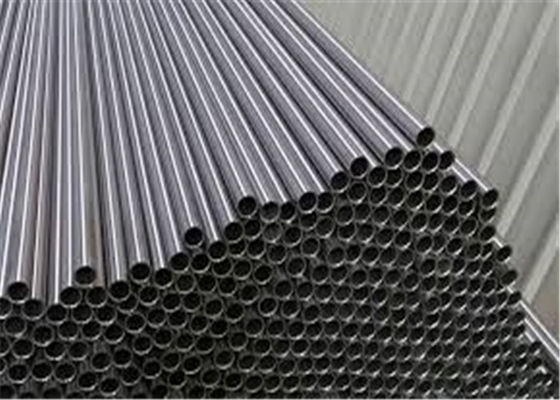

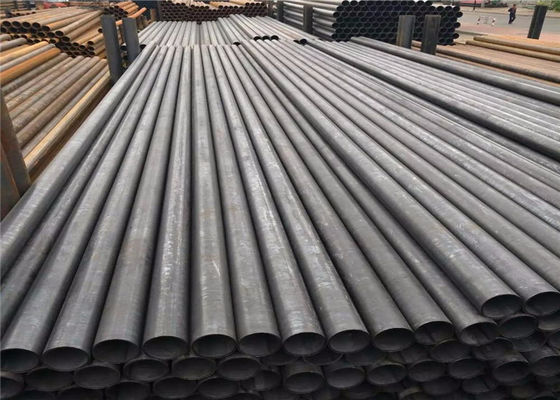

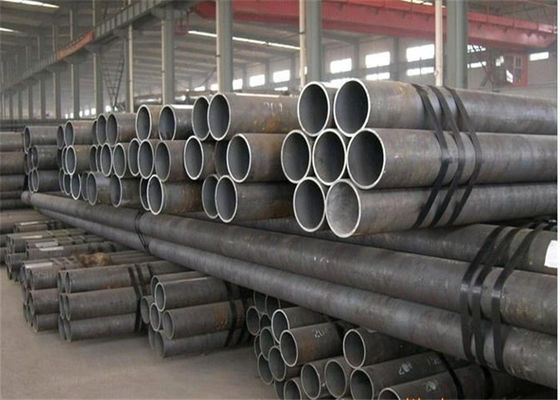

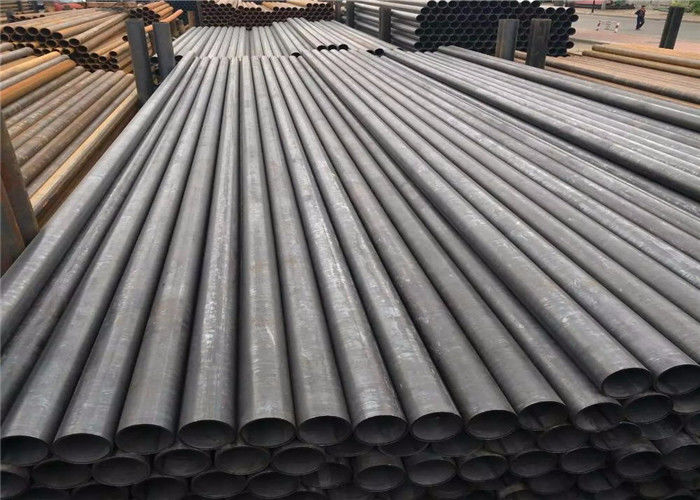

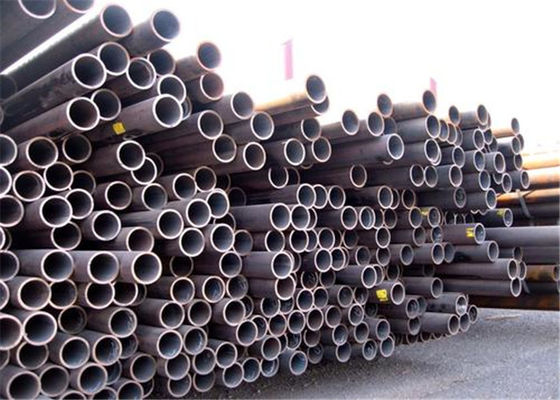

ASTM A106 Pipa Baja Karbon Seamless untuk layanan suhu tinggi
Keterangan
Pipa ASTM A106 adalah spesifikasi standar untuk pipa baja karbon mulus untuk layanan suhu tinggi.Aplikasinya adalah mengangkut gas atau cairan di kilang dan pabrik boiler yang memiliki suhu dan tekanan tinggi.Pipa yang diproduksi menurut ASTM A106 harus cocok untuk pembengkokan, flanging, pengelasan dan operasi pembentukan lainnya
Spesifikasi:
ASTM A106 Komposisi kimia:
| Kualitas baja | C, maks.% | M N % | P, maks | S, maks | Si, min | Cr, maks | Cu, maks | Mo, maks | Ni, maksimal | V, maks |
|---|---|---|---|---|---|---|---|---|---|---|
| Kelas A | 0,25 | 0,27 - 0,93 | 0,035 | 0,035 | 0,10 | 0,40 | 0,40 | 0.15 | 0,40 | 0,08 |
| Kelas B | 0,30 | 0,29 - 1,06 | 0,035 | 0,035 | 0,10 | 0,40 | 0,40 | 0.15 | 0,40 | 0,08 |
| Kelas C | 0.35 | 0,29 - 1,06 | 0,035 | 0,035 | 0,10 | 0,40 | 0,40 | 0.15 | 0,40 | 0,08 |
Properti Mekanik ASTM A106:
| Nilai | Uji Tarik MPa atau N/mm2 | Keterangan (Mirip dengan JIS) | |
|---|---|---|---|
| MIN.Poin Hasil | Kekuatan tarik | ||
| Gr A | 205 | 330Menit | (STPG370) |
| Gr B | 240 | 415 Menit | (STPG410) |
| Gr C | 275 | 485 Menit | (STPG480) |
Toleransi Dimensi ASTM A106:
| Jenis Pipa | Ukuran Pipa | Toleransi | |
|---|---|---|---|
| Ditarik Dingin | OD | 48.3mm | ±0,40mm |
| 60.3mm | ± 1% mm | ||
| WT | ±12,5% | ||
Industri Aplikasi
- Perusahaan Pengeboran Minyak Lepas Pantai
- Pembangkit listrik
- Petrokimia
- Pemrosesan Gas
- Bahan Kimia Khusus
- Farmasi
- Peralatan Farmasi
- Peralatan Kimia
- Peralatan Air Laut
- Penukar panas
- Kondensor
