Horizontal 1.6MPa 60kCal / H Vertical Coal Fired Steam Boiler Untuk Produksi Industri
Product Details
| Bahan bakar: | gas dan minyak | Tipe: | Horisontal atau Vertikal |
|---|---|---|---|
| Media: | Bahan Perpindahan Panas Organik | Fungsi: | Tabung api |
| Tekanan: | Tekanan rendah | Instalasi: | Boiler dikemas |
| Menyoroti |
60kCal / jam boiler berbahan bakar batu bara,ketel uap berbahan bakar batu bara 1.6MPa,ketel uap batu bara horizontal |
||
Product Description

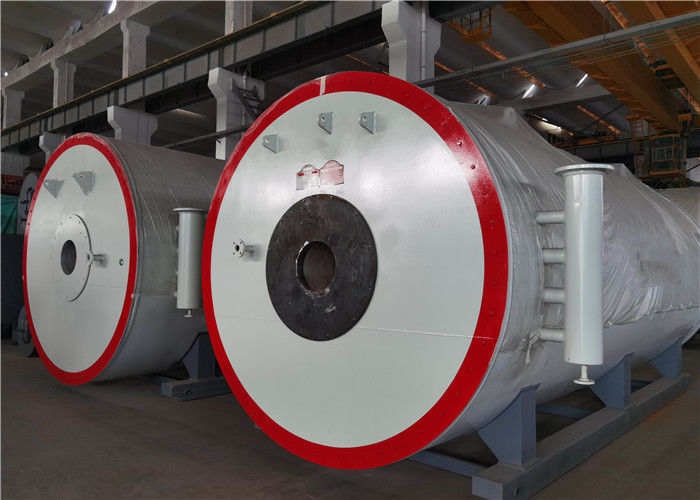

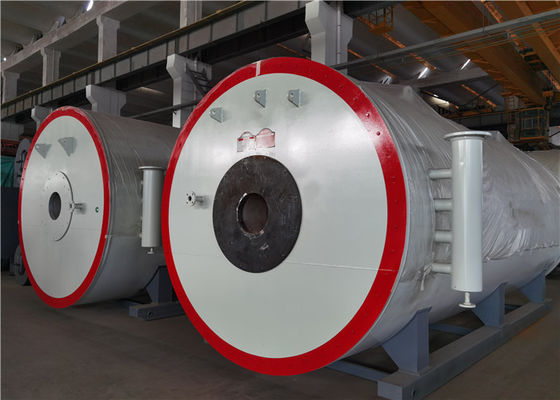

Boiler Pembawa Panas Organik Suhu Tinggi untuk Produksi Industri YLLYGL Type Vertical Coal Fired
tipe produk
YYL (W) tipe vertikal (horizontal) jenis bahan bakar minyak (gas) boiler panas
Rentang Produk
- Nilai daya termal: 0,7MW - 29MW (60xl04Cal/jam - 2500xl04Cal/jam)
- Tekanan desain: 0.6MPa - 1.6MPa
- Parameter spesifik ditunjukkan pada Tabel6
Fitur Struktural Seri Porducts Ini
- Ada dua jenis struktur: vertikal (YYL) dan horizontal (YYW).

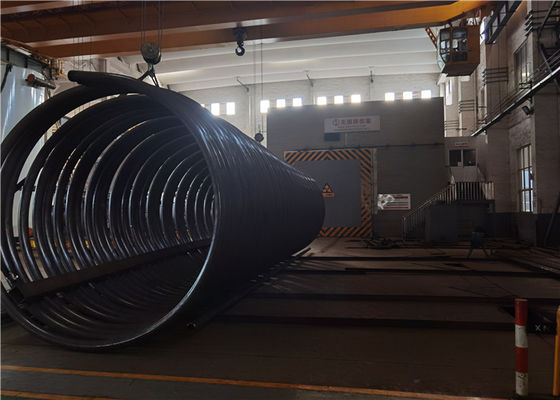

- Permukaan boiler mengadopsi pengaturan tabung-pengencangan dengan struktur spiral.Cerobong asap mengadopsi pengaturan tiga lintasan.
- Pemanas awal udara atau trafo air/uap diatur di belakang boiler, mengurangi suhu, meningkatkan efisiensi termal boiler.
- Pintu pembuka cepat atau pintu observasi dilengkapi untuk kemudahan pemeriksaan inspeksi dan pemeliharaan internal.
| Model | YL(G)L-700SC II | YL(G)L-1000SC II | YL(G)L-1200SC II | YL(G)L-1400SC II | YL(G)L-1600SC II | YL(G)L-1900SC II |
| Kapasitas pemanasanx104(kCal/h) | 60 | 80 | 100 | 120 | 140 | 160 |
| Tekanan desain (Mpa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Maks.suhu kerja (°C) | 320 | 320 | 320 | 320 | 320 | 320 |
| Sirkulasi sedang (m3/jam) | 80 | 100 | 100 | 100 | 100 | 160 |
| Diameter pengawas (DN) | 100 | 125 | 125 | 125 | 125 | 150 |
| Kapasitas terpasang (kW) | 30(25) | 44(41) | 53(49) | 60(56) | 60(56) | 81(77) |
| Efisiensi termal sistem (%) | 82 | 82 | 82 | 82 | 82 | 82 |
| Bahan bakar yang berlaku | Bahan bakar briket biomassa kelas II (tipe kehutanan), ukuran bentuk 10x50, nilai kalor 3800-4000Kkal/kg | |||||
Diagram Sistem Boiler Termal Minyak/Gas
Tabel Parameter 6
Tentang kami
Perusahaan kami memegang stempel "S" dan "U" standar ASME (American Society of Mechanical Engineers), Lisensi Manufaktur Boiler Kelas-A, Lisensi Pabrikan Kapal Tekanan D1D2 dari China.Kami telah menetapkan dan memelihara Sistem Manajemen Mutu yang disertifikasi sesuai dengan Standar Mutu internasional ISO9001
Produk banyak digunakan dalam pembangkit listrik, pemanas, industri kimia, industri tekstil, industri makanan, industri kertas, trotoar, plastik, karet, kayu, dll. Lebih dari 10.000 pelanggan di seluruh dunia.
Produk kami tidak hanya melayani dengan baik untuk seluruh China, tetapi juga diekspor ke negara / wilayah seperti Amerika Serikat, Jepang, Australia, Rusia, Vietnam, Filipina, Malaysia, Indonesia, Pakistan, Kazakhstan, Mesir, dan Afrika.
