Tabung Superheater Tabung Boiler Tekanan Tinggi / Menengah / Rendah Dengan Tingkat Keamanan Tinggi ASME
Product Details
| Nama Produk: | Tabung Boiler Baja Karbon Seamless | Aplikasi: | Untuk ketel bertekanan tinggi dan menengah, dan tujuan tekanan |
|---|---|---|---|
| Standar: | A192M, SA192M | Teknik: | mulus |
| Bentuk bagian: | Bulat | Bahan: | Baja karbon |
| Menyoroti |
Low Pressure Superheater Tube,ASME Superheater Tube,A192M Carbon Steel Boiler Tube |
||
Product Description
Tabung Superheater Tabung Boiler Tekanan Tinggi / Menengah / Rendah Dengan Tingkat Keamanan Tinggi ASME
Tabung Baja Karbon A192 / SA192SMLS Untuk Boiler Tekanan Tinggi, Menengah, Rendah Dan Tujuan Tekanan
Rincian:
Standar: ASTM A192/SA192SMLS
Ukuran: (mm)
Dimensi Keluar: 12,7mm – 114,3mm
Tebal Dinding: 0.8mm - 15mm
Panjang: Tetap (6m,9m,12,24m) atau panjang normal (5-12m)
Keterangan:
ASTM ASTM A192 A192SMLS
Tabung Boiler Baja Karbon Mulus Untuk Layanan Tekanan Tinggi.
Kelas Baja:
Kelas A

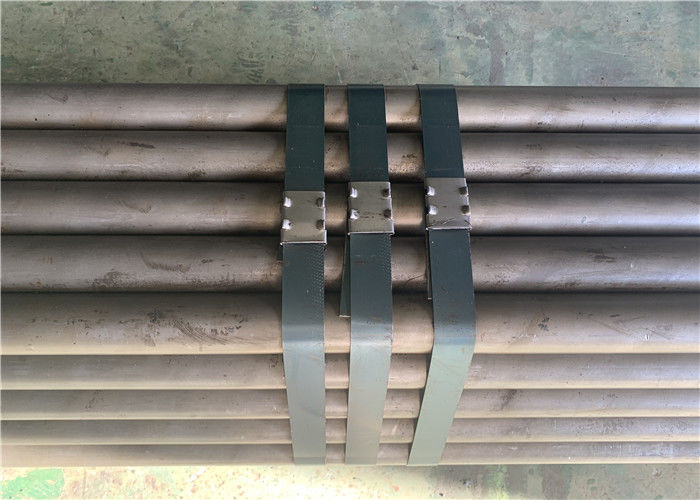

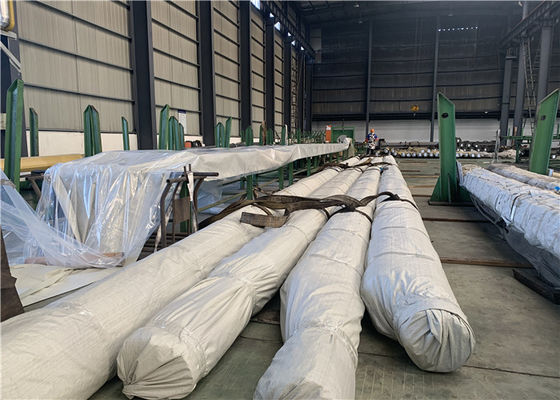

Sedang mengemas:
Miring/lukisan hitam/topi plastik/dalam bundel/strip baja/perlindungan kayu
Inspeksi dan Uji:
Pemeriksaan Komposisi Kimia, Uji Sifat Mekanik (Kekuatan Tarik, Kekuatan Hasil, Perpanjangan, Pembakaran, Perataan, Pembengkokan, Kekerasan, Uji Dampak), Uji Permukaan dan Dimensi, Uji Nodestruktif, Uji Hidrostatik.
Pengobatan permukaan:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Tanda:
Seperti yang diminta.
Kondisi pengiriman:
Anil, Normalisasi, Normalisasi, dan Tempered
Komposisi kimia:
| Produk | Ttem | Nilai | Komposisi kimia | |||||||
| C | Si | M N | P.≤ | S.≤ | Cr | Ni | yang lain | |||
| Baja karbon | 1 | 10 | 0,07/0,13 | 0.17/0.37 | 0.35/0.65 | 0,03 | 0,03 | 0.15 | 0.30 | Cu≤0,25 |
| 2 | 20 | 0.17/0.23 | 0.17/0.37 | 0.35/0.65 | 0,03 | 0,03 | 0,25 | 0.30 | Cu≤0,25 | |
| 3 | A179 | 0,06/0,18 | - | 0.27/0.63 | 0,03 | 0,03 | - | - | - | |
| 4 | A192 | 0,06/0,18 | 0,25 | 0.27/0.63 | 0,03 | 0,03 | - | - | - | |
Peralatan mekanis:
| Barang | tanda | Properti tarik | Kekerasan | ||||
| Kekuatan ekstensi Rm Mpa | Kekuatan Hasil Lebih Rendah Rel atau Rp0.2 MPa | Kekuatan hasil lebih rendah ReL atau Rp0.2 Mpa | |||||
| Ketebalan | Ketebalan | ||||||
| 16 | >16 | <5.1 | 5.1 | ||||
| ≥ | ≤ | ||||||
| 1 | 10 | 335~475 | 205 | 195 | 24 | - | - |
| 2 | 20 | 410~530 | 245 | 235 | 20 | - | - |
| 3 | A179 | 325 | 180 | 35 | - | - | |
| 4 | A192 | 325 | 180 | 35 | 77HRB | 137HB | |
Aplikasi:
1, Untuk evaporator, penukar panas, kondensor, peralatan perpindahan panas dan pipa serupa.
2, Banyak digunakan di bidang perawatan mekanis, industri petrokimia, transportasi dan bidang konstruksi
3, tujuan struktural biasa dan tujuan struktural mekanik, misalnya di bidang konstruksi, bantalan tumpu dll;
4, Transportasi cairan dalam proyek dan peralatan besar, misalnya transportasi air, minyak, gas dll
5, Dapat digunakan dalam boiler tekanan rendah dan menengah untuk pengangkutan cairan, misalnya tabung uap, tabung asap besar, tabung asap kecil, tabung pembangkit dll
Inspeksi dan Uji:
Inspeksi Komposisi Kimia, Uji Sifat Mekanik (Kekuatan Tarik, Kekuatan Hasil,
Perpanjangan, Pembakaran, Perataan, Pembengkokan, Kekerasan, Uji Dampak), Uji Permukaan dan Dimensi, Uji Tidak Merusak, Uji Hidrostatik.
Pengobatan permukaan:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
