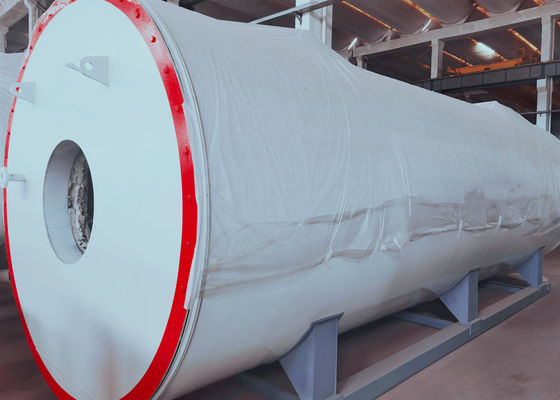

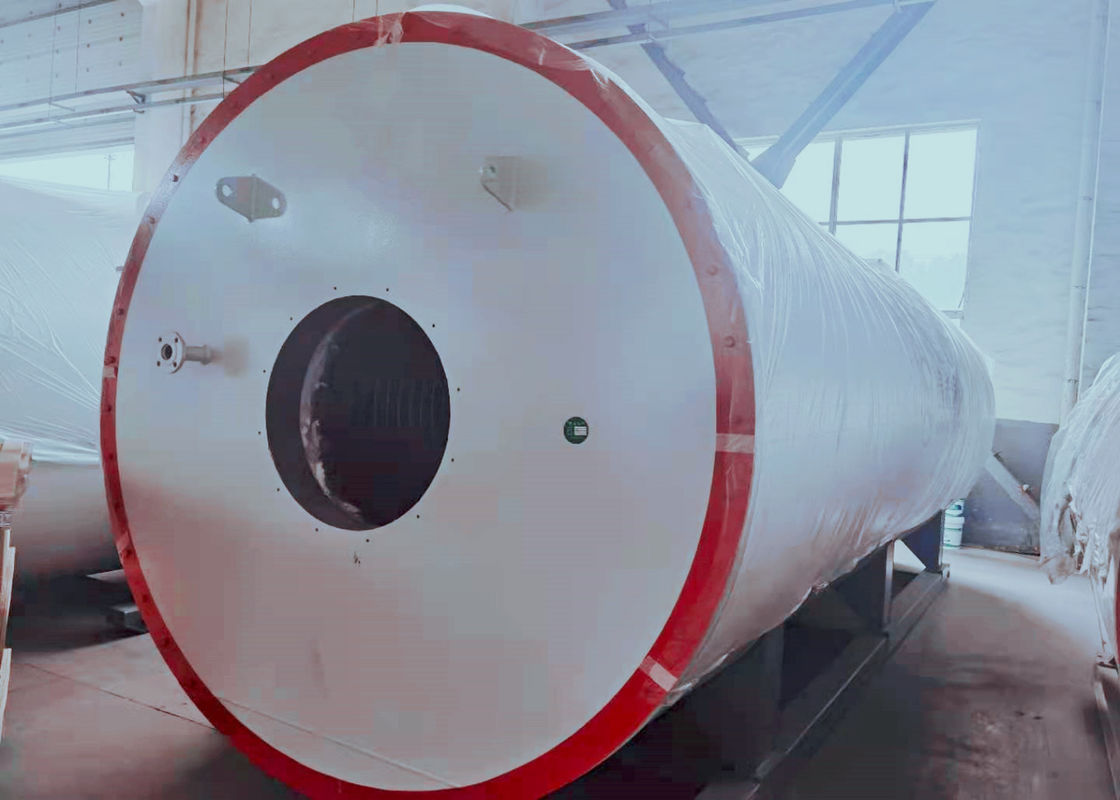

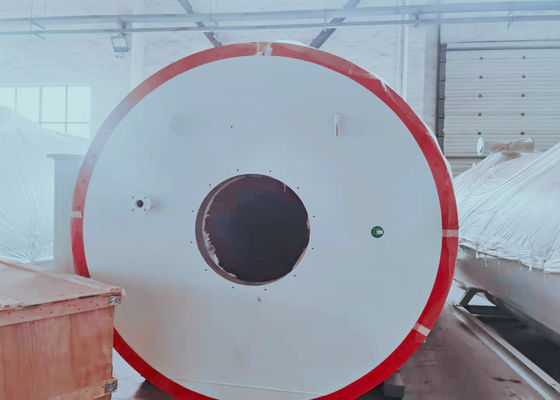

GB 350kW Boiler Pembawa Panas Organik untuk industri Kimia
Product Details
| Nama Produk: | Boiler Pembawa Panas Organik Gas / Minyak | Bahan tabung di dalam: | 20 GB3087 |
|---|---|---|---|
| Aplikasi: | Petrokimia, Kimia, Percetakan, Makanan | Kata kunci: | Ketel Minyak Perpindahan Panas |
| Nilai daya: | 350KW | Tekanan desain: | 1.1 Mpa |
| Menyoroti |
GB Boiler Pembawa Panas Organik,Boiler Pembawa Panas Organik 350kW,boiler uap pembawa 350kW |
||
Product Description
YYW-350Y/Q Boiler Pembawa Panas Organik Berbahan Bakar Gas/Minyak dalam Standar ASME/GB
Perkenalan produk:
Fitur Struktur Seri Produk Ini:
- Permukaan boiler mengadopsi pengaturan tabung-pengencangan dengan struktur spiral.Cerobong asap mengadopsi pengaturan tiga lintasan.
- Pemanas awal udara atau trafo air/uap diatur di belakang boiler, mengurangi suhu, meningkatkan efisiensi termal boiler.
- Pintu pembuka cepat atau pintu observasi dilengkapi untuk kemudahan pemeriksaan inspeksi dan pemeliharaan internal.
Diagram Sistem Boiler Termal Minyak/Gas
Rentang Produk:
Nilai daya termal: 0,7MW - 29MW (60xl04Cal/jam - 2500xl04Cal/jam)
Tekanan desain: 0.6MPa - 1.6MPa
Parameter spesifik ditunjukkan pada tabel di bawah ini.
Beberapa Model Spesifikasi:
| Model | YYL(W)-350Y, Q | YYL(W)-600Y, Q | YYL(W)-700Y, Q | YYL(W)-900Y, Q | YYL(W)-1200Y, Q | YYL(W)-1500Y, Q | YYL(W)-1800Y, Q | |
| Tingkat daya (kW) | 350 | 600 | 700 | 900 | 1200 | 1500 | 1800 | |
| Kapasitas pemanasanx10000 (kKal/jam) | 30 | 50 | 60 | 75 | 100 | 130 | 150 | |
| Efisiensi termal bahan bakar | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Efisiensi termal gas | 92 | 92 | 92 | 92 | 92 | 92 | 92 | |
| Tekanan desain (Mpa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
| Maks.suhu kerja (℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
| Sirkulasi sedang (m3/jam) | 40 | 60 | 60 | 100 | 100 | 100 | 100 | |
| Kapasitas sedang dalam tungku (m3) | 0.24 | 0,7 | 0,7 | 0,7 | 0.8 | 0,95 | 2.1 | |
| Diameter pengawas (DN) | 80 | 100 | 100 | 125 | 125 | 125 | 150 | |
| Kapasitas terpasang (kW) | 12 | 22 | 23 | 30 | 40 | 42 | 57 | |
| Bahan bakar yang berlaku | Minyak gas | |||||||
| Konsumsi bahan bakar Kg/hl (minyak ringan)/Nm3/jam (gas alam) | 32.6/38.5 | 56/66 | 65.3/77 | 84/99 | 112/132 | 140/165 | 168/198 | |
| Ukuran panjang x lebar x tinggi (m) | Ketel vertikal | 1.97x1.76x3.1 | 1.97x1.76x3.2 | 1.97x1.76x3.2 | 3.5x1.76x3.2 | 4.64x2.9x2.125 | 3.11x2.17x5.27 | 5.7x2.55x2.8 |
| Ketel horisontal | 2.3x1.65x1.5 | 3.15x1.95x1.84x3.15x1.95x1.84 | 3.6x2.1x2 | 4.05x2.13x2.07 | 4.4x2.15x2.13 | 4.94x2.2x2.8 | ||
| Model | YYL(W)-2300Y,Q | YYL(W)-2900Y,Q | YYL(W)-3500Y,Q | YYL(W)-4100Y,Q | YYL(W)-4700Y,Q | YYL(W)-5900Y,Q | |
| Nilai daya (kW) | 2300 | 2900 | 3500 | 4100 | 4700 | 5900 | |
| Kapasitas pemanasanx104(kCal/h) | 200 | 250 | 300 | 350 | 400 | 500 | |
| Efisiensi termal bahan bakar | 90 | 90 | 90 | 90 | 90 | 90 | |
| Efisiensi termal gas | 92 | 92 | 92 | 92 | 92 | 92 | |
| Tekanan desain (Mpa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
| Maks.suhu kerja (° C) | 320 | 320 | 320 | 320 | 320 | 320 | |
| Sirkulasi sedang (m3 / jam) | 160 | 200 | 200 | 200 | 260 | 300 | |
| Kapasitas Sedang di Tungku (m3) | 2.4 | 2.9 | 3.2 | 4.1 | 5.6 | 8.8 | |
| Diameter pengawas (DN) | 150 | 200 | 200 | 200 | 200 | 250 | |
| Kapasitas terpasang (kW) | 60 | 74 | 78 | 78 | 101 | 124 | |
| Bahan bakar yang berlaku | Minyak gas | ||||||
| Konsumsi bahan bakar Kg/h (minyak ringan) /Nm3/h (gas alam) | 214.5/253 | 270.4/319 | 326/385 | 382/451 | 438/517 | 550/649 | |
| Ukuran panjang X lebar X tinggi (m) | Ketel vertikal | 2.9X3.1X6.4 | 6x3.1x2.98 | 5.86X3.44X3.08 | 3.15X347X615 | 6.49X3.44X3.08 | 7.45x3.65x3.45 |
| Ketel harizontal | 5.5X2.8X2.9 | 6.5X2.88X2.65 | 6.8X3X3.15 | 7.2X3.31X3.25 | 7X3.5X3.25 | 8.2X4X3.46 | |
