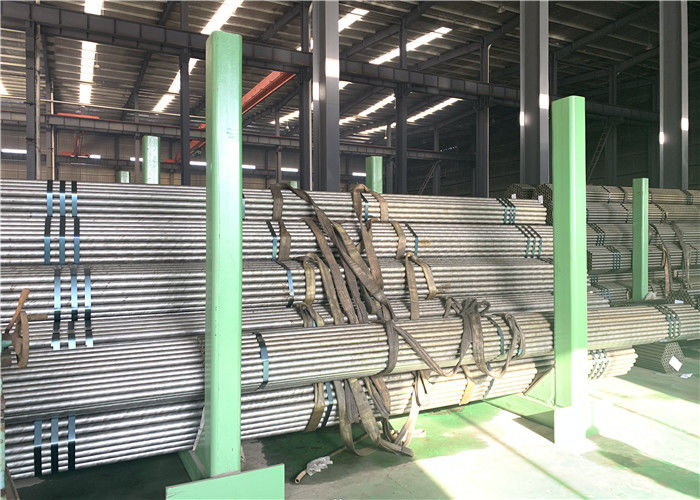

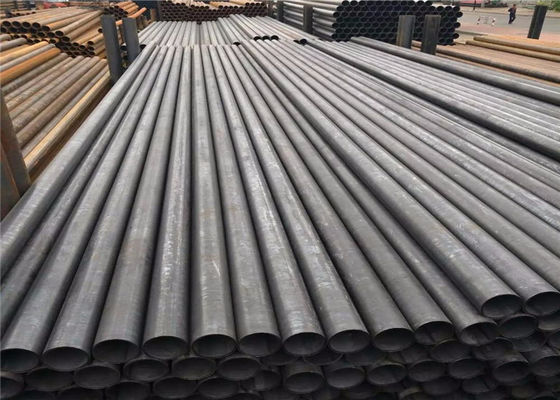

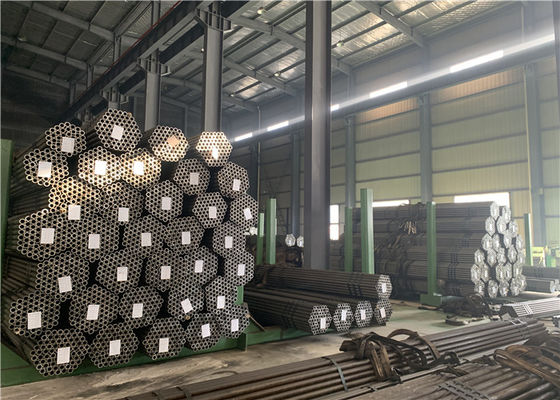

SA210 GR A1 63.5X4.06MM Steam Boiler Tube For Water Wall Panel
Product Details
| Nama Produk: | Tabung Boiler Baja Karbon Seamless | Aplikasi: | Untuk ketel bertekanan tinggi dan menengah, dan tujuan tekanan |
|---|---|---|---|
| Standar: | SA210 GR A1 | Teknik: | mulus |
| Bentuk bagian: | Bulat | Bahan: | Baja karbon |
| Menyoroti |
GR A1 steam boiler tube,SA210 steam boiler tube,Water Wall Panel sa210 tube |
||
Product Description
Tabung Boiler Untuk Panel Dinding Air SA210 GR A1 63.5X4.06MM ASME 3.000 Ton Per Bulan
SA210 GR A1 SMLS Tabung Baja Karbon Untuk Ketel Tekanan Tinggi, Menengah, Rendah Dan Tujuan Tekanan
Rincian:
Standar: ASTM SA210 GR A1 SMLS
Ukuran: (mm)
Dimensi Keluar: 12,7mm – 114,3mm
Tebal Dinding: 0.8mm - 15mm
Panjang: Tetap (6m,9m,12,24m) atau panjang normal (5-12m)
Keterangan:
ASTM SA210 GR A1 SMLS
Tabung Boiler Baja Karbon Mulus Untuk Layanan Tekanan Tinggi.
Kelas Baja:
Kelas A
Sedang mengemas:

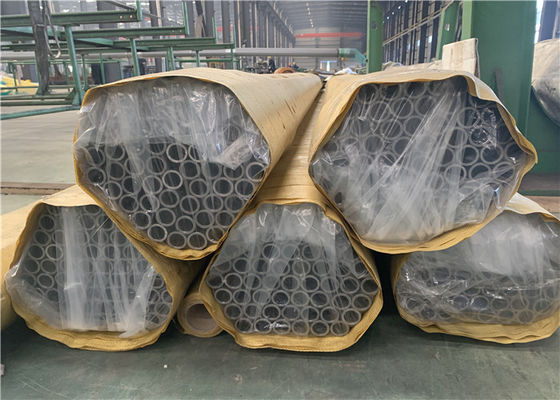

Miring/lukisan hitam/topi plastik/dalam bundel/strip baja/perlindungan kayu
Inspeksi dan Uji:
Pemeriksaan Komposisi Kimia, Uji Sifat Mekanik (Kekuatan Tarik, Kekuatan Hasil, Perpanjangan, Pembakaran, Perataan, Pembengkokan, Kekerasan, Uji Dampak), Uji Permukaan dan Dimensi, Uji Nodestruktif, Uji Hidrostatik.
Pengobatan permukaan:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Tanda:
Seperti yang diminta.
Kondisi pengiriman:
Anil, Normalisasi, Normalisasi, dan Tempered
Komposisi kimia:
| Produk | Ttem | Nilai | Komposisi kimia | |||||||
| C | Si | M N | P.≤ | S.≤ | Cr | Ni | yang lain | |||
| Baja karbon | 1 | 10 | 0,07/0,13 | 0.17/0.37 | 0.35/0.65 | 0,03 | 0,03 | 0.15 | 0.30 | Cu≤0,25 |
| 2 | 20 | 0.17/0.23 | 0.17/0.37 | 0.35/0.65 | 0,03 | 0,03 | 0,25 | 0.30 | Cu≤0,25 | |
| 3 | A179 | 0,06/0,18 | - | 0.27/0.63 | 0,03 | 0,03 | - | - | - | |
| 4 | A192 | 0,06/0,18 | 0,25 | 0.27/0.63 | 0,03 | 0,03 | - | - | - | |
Peralatan mekanis:
| Barang | tanda | Properti tarik | Kekerasan | ||||
| Kekuatan ekstensi Rm Mpa | Kekuatan Hasil Lebih Rendah Rel atau Rp0.2 MPa | Kekuatan hasil lebih rendah ReL atau Rp0.2 Mpa | |||||
| Ketebalan | Ketebalan | ||||||
| 16 | >16 | <5.1 | 5.1 | ||||
| ≥ | ≤ | ||||||
| 1 | 10 | 335~475 | 205 | 195 | 24 | - | - |
| 2 | 20 | 410~530 | 245 | 235 | 20 | - | - |
| 3 | A179 | 325 | 180 | 35 | - | - | |
| 4 | A192 | 325 | 180 | 35 | 77HRB | 137HB | |
Aplikasi:
1, Untuk evaporator, penukar panas, kondensor, peralatan perpindahan panas dan pipa serupa.
2, Banyak digunakan di bidang perawatan mekanis, industri petrokimia, transportasi dan bidang konstruksi
3, tujuan struktural biasa dan tujuan struktural mekanik, misalnya di bidang konstruksi, bantalan tumpu dll;
4, Transportasi cairan dalam proyek dan peralatan besar, misalnya transportasi air, minyak, gas dll
5, Dapat digunakan dalam boiler tekanan rendah dan menengah untuk pengangkutan cairan, misalnya tabung uap, tabung asap besar, tabung asap kecil, tabung pembangkit dll
Inspeksi dan Uji:
Inspeksi Komposisi Kimia, Uji Sifat Mekanik (Kekuatan Tarik, Kekuatan Hasil,
Perpanjangan, Pembakaran, Perataan, Pembengkokan, Kekerasan, Uji Dampak), Uji Permukaan dan Dimensi, Uji Tidak Merusak, Uji Hidrostatik.
Pengobatan permukaan:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
