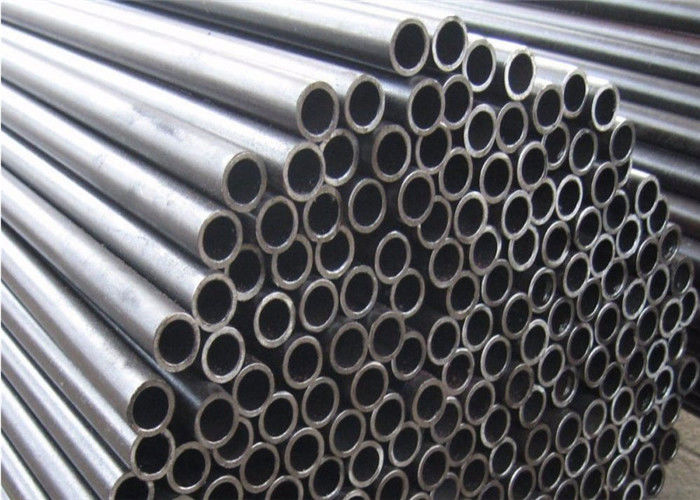

Tabung Boiler Seamless Economizer SA179M Superheater
Product Details
| Kualitas baja: | ASTM A213/ASME SA213 T11, T22, T1, T23, T5, T9.T91 , T92 | Permukaan: | Terang Anil |
|---|---|---|---|
| Standar: | ASTM A213/UKM SA213 | Aplikasi: | Boiler & penukar panas, Superheater, Reheater, Preheater udara, Economizer |
| OD: | 1/4 ''SAMPAI 5'' | NDT: | ET/UT/HT |
| Menyoroti |
Tabung Boiler Mulus SA179M,Tabung Boiler Mulus Economizer,tabung superheater SA179M |
||
Product Description
ASTM A179/A179M, ASME SA179/SA179M Tabung baja karbon rendah yang ditarik dingin dengan mulus sifat yang baik dalam kekerasan dan kekuatan
Teknologi Energi Hua Dong ekspor pipa ketel baja(pipa baja mulus dan pipa baja dilas) sesuai dengan metode produksi, spesifikasi pipa boiler baja dengan dimensi keseluruhan (seperti diameter atau panjang) dan ketebalan dinding, pipa boiler baja dapat digunakan dalam pipa, peralatan teknologi termal, mesin industri, eksplorasi geologi minyak bumi, wadah, industri kimia, dan tujuan khusus lainnya.
| Karbon | kromiun | Suhu rendah | Besi tahan karat | Rangkap | Tembaga & Perunggu | Titanium | Paduan Ni | ||
| SA178-A | SA213-T1 | SA333-Gr.1 | SA213 | TP316L | A789-S31803 | SB111-C70600 | SB338-GR.1 | SB163 | NO2200 |
| SA178-C | SA213-T11 | SA333-Gr.3 | SA249 | TP316H | A789-S32205 | SB111-C71500 | SB338-GR.2 | SB167 | NO2201 |
| SA179 | SA213-T12 | SA333-Gr.6 | SA268 | TP316Ti | A789-S32750 | SB111-C71640 | SB338-GR.5 | SB444 | NO8020 |
| SA192 | SA213-T22 | SA333-Gr.7 | SA269 | TP316LN | A789-S32760 | SB111-C68700 | SB338-GR.7 | SB514 | NO6022 |
| SA209-T1 | SA213-T5 | SA333-Gr.8 | SA376 | TP321 | A789-S32707 | SB111-C44300 | SB338-GR.9 | SB619 | N10276 |
| SA209-T1a | SA213-T9 | SA334-Gr.1 | TP304 | TP321H | A789-S32304 | SB338-GR.12 | SB622 | NO4400 | |
| SA209-T1b | SA213-T91 | SA334-Gr.3 | TP304L | TP347 | A789-S31500 | SB626 | NO6600 | ||
| SA210-A1 | SA334-Gr.6 | TP304H | TP347H | S31254 | SB674 | NO6601 | |||
| SA210-C | SA334-Gr.7 | TP304N | TP405 | 254MA | SB677 | NO6625 | |||
| SA214 | SA334-Gr.8 | TP310H | TP409 | 17-4PH | SB704 | NO690 | |||
| SA513 MT 1010 | TP310S | TP410 | 17-7PH | SB705 | NO8800 | ||||
| SA513 MT 1015 | TP309S | TP430 | 15-7PH | N1001 | NO8810 | ||||
| SA513 MT 1020 | TP317 | TP439 | N10665 | NO8811 | |||||
| TP317L | TP444 | N10675 | NO8825 | ||||||
| TP348 | TP446 | TP904L | |||||||
| TP347HFG | |||||||||
| Ukuran Tabung untuk Penukar Panas & Kondensor & Boiler | |||||||||
| Diameter luar | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Tebal Dinding mm | |||||||||
| 0,508 | 0,71 | 0,89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | inci | Berat kg/m | |||||||
| 6.35 | 1/4 | 0,081 | 0.109 | 0,133 | 0,174 | 0.212 | |||
| 9.53 | 3/8 | 0,126 | 0,157 | 0.193 | 0.257 | 0,356 | 0,429 | ||
| 12,7 | 1/2 | 0.214 | 0,263 | 0,356 | 0,457 | 0.612 | 0,754 | ||
| 15.88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0.995 | ||
| 19.05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1.236 | ||
| 25.4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0,667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2,729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Komposisi Kimia dan Sifat Mekanik
| Nilai | Komposisi kimia% | ||||||||
| C | Si | M N | P, S Maks | Cr | Mo | Ni Max | V | Al Max | |
| T2 | 0,10~0,20 | 0,10~0,30 | 0,30~0,61 | 0,025 | 0,50~0,81 | 0,44~0,65 | - | - | - |
| T11 | 0,05~0,15 | 0.50~1.00 | 0,30~0,60 | 0,025 | 1,00~1,50 | 0,44~0,65 | - | - | - |
| T12 | 0,05~0,15 | Maks 0,5 | 0,30~0,61 | 0,025 | 0,80~1,25 | 0,44~0,65 | - | - | - |
| T22 | 0,05~0,15 | Maks 0,5 | 0,30~0,60 | 0,025 | 1,90~2,60 | 0,87~1,13 | - | - | - |
| T91 | 0,07~0,14 | 0,20~0,50 | 0,30~0,60 | 0,02 | 8.0~9.5 | 0,85~1,05 | 0.4 | 0.18~0.25 | 0,015 |
| T92 | 0,07~0,13 | Maks 0,5 | 0,30~0,60 | 0,02 | 8.5~9.5 | 0,30~0,60 | 0.4 | 0,15~0,25 | 0,015 |
| Nilai | Komposisi kimia% | Peralatan mekanis | |||||||
| W | B | Nb | n | T. S | Y.P | Pemanjangan | Kekerasan | ||
| T2 | - | - | - | - | 415MPa | 205MPa | 30% | 163HBW (85HRB) | |
| T11 | - | - | - | - | 415MPa | 205MPa | 30% | 163HBW (85HRB) | |
| T12 | - | - | - | - | 415MPa | 220MPa | 30% | 163HBW (85HRB) | |
| T22 | - | - | - | - | 415MPa | 205MPa | 30% | 163HBW (85HRB) | |
| T91 | - | - | 0,06~0,10 | 0,03~0,07 | 585MPa | 415MPa | 20% | 250HBW(25HRB) | |
| T92 | 1.50~2.00 | 0,001~0,006 | 0,04~0,09 | 0,03~0,07 | 620MPa | 440MPa | 20% | 250HBW(25HRB) | |
ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Toleransi
| Diameter luar | Toleransi OD | Toleransi WT | Toleransi Ovalitas | Toleransi Panjang Potong |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15% | - | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD 38, 1 mm | ± 0, 13 mm | ± 10% | maks, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD 88, 9 mm | ± 0, 25 mm | ± 10% | maks, 2, 41 mm | + 4, 76 mm, – 0 mm |
- T11 Alloy Steel Tube untuk pembangkit listrik, minyak bumi, dan layanan suhu tinggi lainnya
- T22 Alloy Steel Tube untuk pembangkit listrik, minyak bumi, dan layanan suhu tinggi lainnya
- Tabung Baja Paduan T5 untuk minyak bumi
- Tabung Baja Paduan T9 untuk minyak bumi
- T91 Alloy Steel Tube untuk pembangkit listrik
- T92 Alloy Steel Tube untuk pembangkit listrik
- T1 Alloy Steel Tube untuk penggantian dan perbaikan boiler
- Tabung SA209 T1 untuk Boiler Manufaktur
- ASTM A213 / ASME SA213 T5 Tabung Baja Paduan untuk Superheater
- ASTM A213 / ASME SA213 T5 Tabung Baja Paduan untuk Penukar Panas
Sertifikasi
