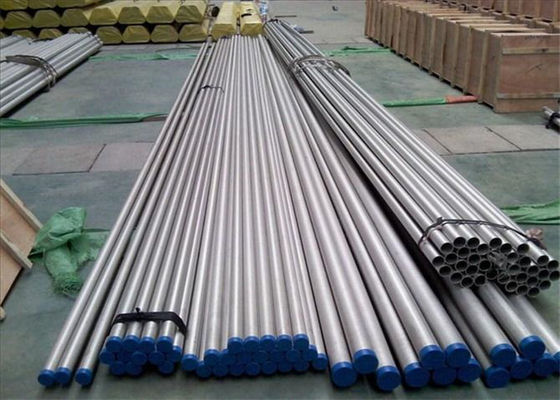

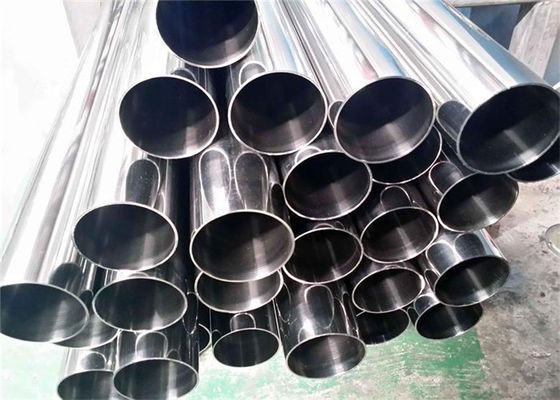

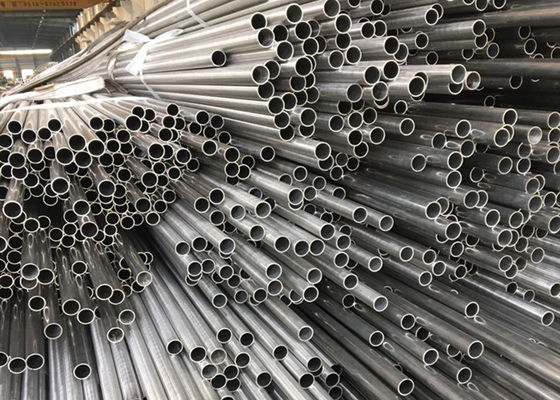

TP316L Bright Annealed stainless steel pipa seamless ketebalan SCH160
Product Details
| Standar: | ASTM, EN, ISO9001, TUV | Menyelesaikan: | Terang Annealed |
|---|---|---|---|
| Aplikasi: | Industri Boiler & Penukar Panas, energi, makanan, kertas, gas dan cairan | membentuk: | bulat mulus |
| OD: | OD: 1/8 "sampai 10" | Ketebalan: | SCH10-SCH160 |
| Menyoroti |
Pipa seamless stainless steel anil terang,pipa seamless stainless steel SCH160,tabung stainless steel mulus SCH160 |
||
Product Description
TP316L Bright Annealed Seamless Stainless Tube Tahan Korosi 76x6x6000mm
| Barang | Keterangan | |
| Informasi dasar | Kelas bahan | TP304, TP304L, TP304H, TP316, TP316L, TP316Ti, TP309S, TP310S, TP321, TP321H, TP347, TP347H, S31803, S32750, S32205 dll |
| Diameter luar | 6.00mm - 48.00mm | |
| Ketebalan dinding | 0.71mm - 2.11mm | |
| Panjang | Biasanya panjang tetap 6m, bisa sesuai kebutuhan pelanggan | |
| Standar | ASTM A213 ;ASTM A269 ;ASTM A312 ;ASTM A789 ;ASTM A790 dll. | |
| Metode Proses | Diambil Dingin atau Digulung Dingin | |
ASME SA213 / A213: Spesifikasi Standar untuk Boiler Baja Paduan Feritik dan Austenitik yang Mulus, Tabung Penukar Panas Superheater dan Baja Tahan Karat.
ASTM A249 / A249M: Spesifikasi Standar untuk Boiler Baja Austenitik Dilas, Penukar Panas Superheater, dan Tabung Kondensor.
Aplikasi:
1 .Untuk transportasi cairan & gas
2 .Petrokimia
3 .Perlindungan lingkungan
4 .Struktur & Mesin
5 .Listrik
6 .Industri instrumen dll
| Pengukur Kawat Standar (Sebelumnya Pengukur Kawat Imperial) SWG | |||||
| SWG | Ketebalan dinding | SWG | Ketebalan dinding | ||
| 0 | 0,324 | 8.23 | 21 | 0,032 | 0,81 |
| 1 | 0,3 | 7.62 | 22 | 0,028 | 0,71 |
| 2 | 0.276 | 7.01 | 23 | 0,024 | 0,61 |
| 3 | 0,252 | 6.4 | 24 | 0,022 | 0,56 |
| 4 | 0,232 | 5.89 | 25 | 0,02 | 0,51 |
| 5 | 0.212 | 5.38 | 26 | 0,018 | 0,46 |
| 6 | 0.192 | 4.88 | 27 | 0,0164 | 0,42 |
| 7 | 0,176 | 4.47 | 28 | 0,0148 | 0.38 |
| 8 | 0.16 | 4.06 | 29 | 0,0136 | 0.35 |
| 9 | 0.144 | 3.66 | 30 | 0,0124 | 0.31 |
| 10 | 0,128 | 3.25 | 31 | 0,0116 | 0,29 |
| 11 | 0,116 | 2.95 | 32 | 0,0108 | 0.27 |
| 12 | 0.104 | 2.64 | 33 | 0,01 | 0,25 |
| 13 | 0,092 | 2.34 | 34 | 0,0092 | 0,23 |
| 14 | 0,08 | 2.03 | 35 | 0,0084 | 0.21 |
| 15 | 0,072 | 1.83 | 36 | 0,0076 | 0.19 |
| 16 | 0,064 | 1.63 | 37 | 0,0068 | 0.17 |
| 17 | 0,056 | 1.42 | 38 | 0,006 | 0.15 |
| 18 | 0,048 | 1.22 | 39 | 0,0052 | 0.13 |
| 19 | 0,04 | 1.02 | 40 | 0,0048 | 0.12 |
| 20 | 0,036 | 0,91 | |||
EN10216-5 Komposisi Kimia Standar :
| Kualitas baja | C | Si | M N | P | S | n | Cr | Cu | mo | Nb | Ni | Ti | Yang lain | |
| maksimal | maksimal | maksimal | ||||||||||||
| Nama Baja | Nomor Baja | |||||||||||||
| X2CrNi19-11 | 1.4306 | 0,03 | 1 | 2 | 0,04 | 0,015 | 0.11 | 18.00 - 20.00 | - | - | - | 8.00 - 10.00 | - | - |
| X5CrNi18-10 | 1.4301 | 0,07 | 1 | 2 | 0,04 | 0,015 | 0.11 | 17.00 - 19.50 | - | - | - | 8.00 - 10.50 | - | - |
| X6CrNiTi18-10 | 1.4541 | 0,08 | 1 | 2 | 0,04 | 0,015 | 0.11 | 17.00 - 19.00 | - | - | - | 9.00 - 12.00 | 5xC hingga 0,70 | - |
| X6CrNiNb18-10 | 1.4550 | 0,08 | 1 | 2 | 0,04 | 0,015 | - | 17.00 - 19.00 | - | - | 10xC hingga 1,00 | 9.00 - 12.00 | - | - |
| X2CrNiMo17-12-2 | 1.4404 | 0,03 | 1 | 2 | 0,04 | 0,015 | 0.11 | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.00 - 13.00 | - | - |
| X5CrNiMo17-12-2 | 1.4401 | 0,07 | 1 | 2 | 0,04 | 0,015 | 0.11 | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.00 - 13.00 | - | - |
| X6CrNiMoTi17-12-2 | 1.4571 | 0,08 | 1 | 2 | 0,04 | 0,015 | - | 16.50 - 18.50 | - | 2.00 - 2.50 | - | 10.50 - 13.50 | 5xC hingga 0,70 | - |
Komposisi Kimia Standar ASTM A213 / A213M :
| Elemen | 304L (% berat) S30403 | 304 (% berat) S30400 | 316L (% berat) S31603 | 316 (% berat) S31600 |
| (C) Karbon, maks | 0,035 | 0,08 | 0,035 | 0,08 |
| (Mn) Mangan, maks | 2 | 2 | 2 | 2 |
| (P) Fosfor, maks | 0,045 | 0,045 | 0,045 | 0,045 |
| (S) Sulfur, maks | 0,03 | 0,03 | 0,03 | 0,03 |
| (Si) Silikon, maks | 1 | 1 | 1 | 1 |
| (Ni) Nikel | 8.0 - 12.0 | 8.0 - 11.0 | 10,0 - 14,0 | 10,0 - 14,0 |
| (Cr) Kromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molibdenum | T/A | T/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Besi | Bal. | Bal. | Bal. | Bal. |
| (Cu) Tembaga | T/A | T/A | T/A | T/A |
| (N) Nitrogen | T/A | T/A | T/A | T/A |
Komposisi Kimia Standar ASTM A312 / A312M :
| Elemen | 304L (% berat) | 316L (% berat) |
| (C) Karbon, maks | 0,035 | 0,035 |
| (Mn) Mangan, maks | 2 | 2 |
| (P) Fosfor, maks | 0,045 | 0,045 |
| (S) Sulfur, maks | 0,03 | 0,03 |
| (Si) Silikon, maks | 1 | 1 |
| (Ni) Nikel | 8.0 - 13.0 | 10,0 - 14,0 |
| (Cr) Kromium | 18.0 - 20.0 | 16.0 - 18.0 |
| (Mo) Molibdenum | T/A | 2.0 - 3.0 |
| (Fe) Besi | Bal. | Bal. |
| (Cu) Tembaga | T/A | T/A |
| (N) Nitrogen | T/A | T/A |
