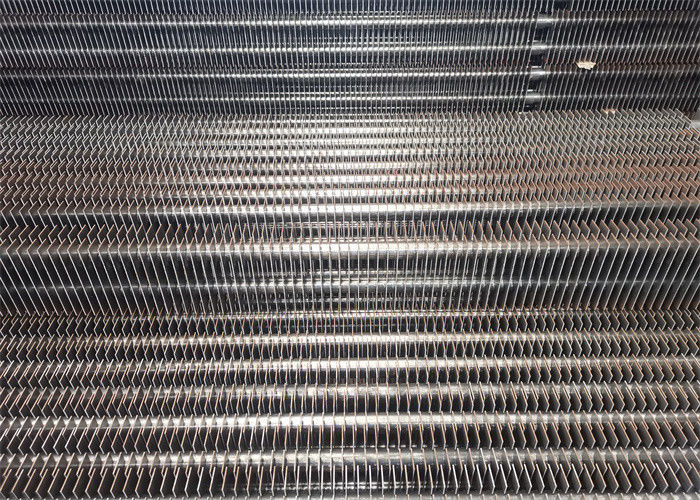

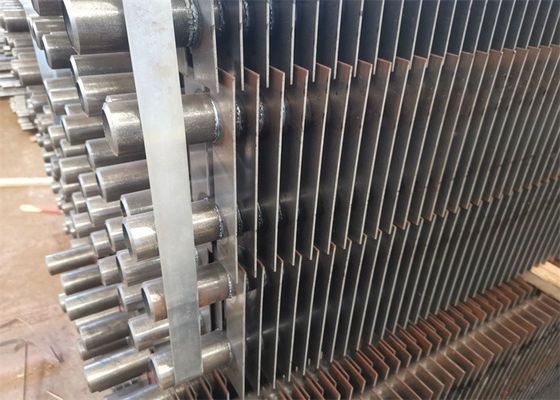

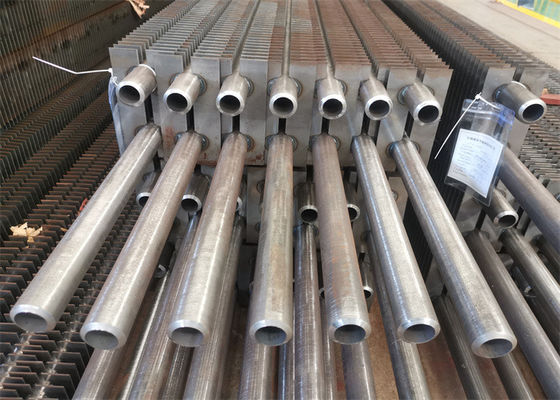

Carbon Steel H Finned Boiler Tube 3mm Bagian Pengganti Pertukaran Panas
Product Details
| Jenis: | Tabung Sirip, Tabung Penukar Panas | Warna: | Disesuaikan |
|---|---|---|---|
| Kemasan: | Kasus kayu dengan rangka baja, Dalam bundel, dll. | Pelabuhan: | Shanghai |
| Jaminan: | 1 tahun | Efisiensi perpindahan panas: | Efisiensi tinggi |
| Menyoroti |
Tabung Boiler Bersirip Baja Karbon H,Tabung Boiler Bersirip 3mm,Pertukaran Panas H Tabung Boiler Bersirip |
||
Product Description
Carbon Steel H Finned Boiler Fin Tube Heat Exchange Bagian Penggantian
Deskripsi Tabung Sirip &spesifikasi
1.Finned Tube Heat Exchanger terdiri dari rakitan shell dan tabung bersirip.
2. Sirip digunakan untuk meningkatkan luas permukaan efektif tabung penukar panas.
3. Tabung bersirip digunakan ketika koefisien perpindahan panas di bagian luar tabung jauh lebih rendah daripada di bagian dalam; seperti dalam perpindahan panas dari cairan ke gas, uap ke gas, seperti penukar panas uap ke udara, fluida termis ke penukar panas udara, ketika permukaan yang diperluas diperlukan hanya pada satu sisi fluida atau ketika tekanan operasi perlu ditampung di satu sisi fluida.
Keuntungan
1).Tambahkan area pertukaran panas dan kurangi jumlah tabung, juga tingkatkan area bagian aliran asap untuk mengurangi kecepatan dan abrasi asap.
2).Tabung sirip tipe H dapat dibuat untuk menggandakan tabung sirip tipe H, kekakuan tinggi agar sesuai dengan baris tabung panjang.
3).Economizer sirip tipe H disusun sejajar untuk membuat ruang menjadi banyak zona kecil, aliran udara rata-rata untuk mengurangi abrasi.
4).Dengan saluran lurus untuk mendapatkan efek hembusan abu terbaik.
5).Struktur kompak untuk mengurangi berat dan mengurangi biaya produksi.
| Bahan Tabung Dasar | Baja Tahan Karat, Baja Karbon, Baja Paduan, Paduan Tembaga, Aluminium, SA179 | ||
| Bahan sirip | Aluminium, Paduan Tembaga, Baja Tahan Karat, Baja Karbon | ||
| Standar | ASME SA213/ASTM;ASME EA 106, ASME SA178, ASTM B1111 | ||
| Kedalaman sirip | 0,5-3mm | ||
| Pipa dasar OD | 12,7-18mm | ||
| Sirip per inci | 8-20Nos (sebagai permintaan pelanggan) | ||
| Persyaratan Tes | Uji Sifat Fisik, Analisis Komposisi Kimia, Uji Non-Destruktif, Inspeksi dan Uji Lainnya sebagai kebutuhan pelanggan. | ||
| Aplikasi | Air Cooler, Charge Air Chiller, Kondensor, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater dll. |
||
