ASTM A210A1 Boiler Steel Tube Bending Pipa Seamless Dilapisi Pernis Kering
Product Details
| Standar: | API/CE/ISO/TUV | Nama Produk: | Tabung Boiler Pipa Baja Karbon untuk Penukar Panas |
|---|---|---|---|
| Aplikasi: | Ketel Industri | Pengobatan permukaan: | Dilapisi pernis kering |
| Menyoroti |
Tabung Baja Boiler Menekuk Pipa Seamless,Tabung Baja Seamless Boiler ASTM,Tabung Baja Boiler Dilapisi Pernis Kering |
||
Product Description

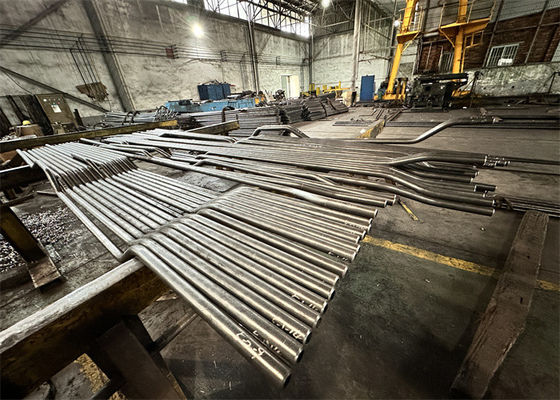

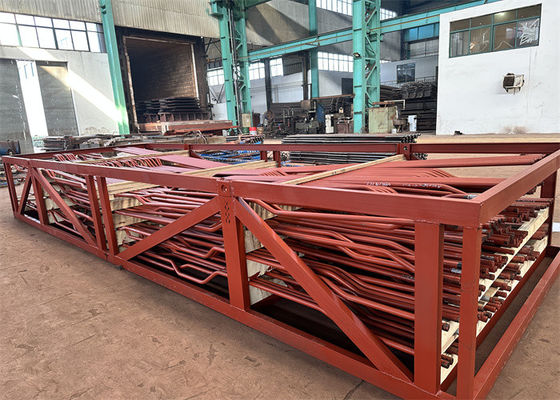

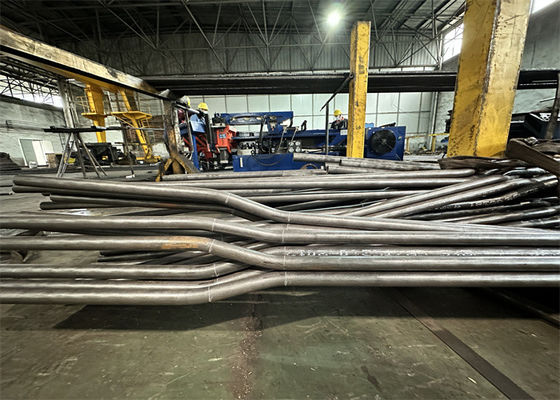

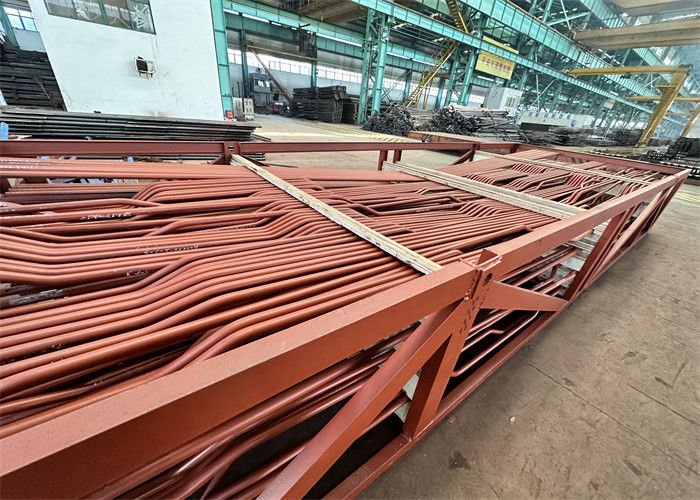

ASTM A210A1 Boiler Steel Tube Bending Sebagai Pipa Seamless yang Disesuaikan
HDT mengontrol seluruh proses manufaktur dari bahan mentah hingga produk jadi, titik inspeksi ditempatkan di lokasi proses manufaktur untuk memastikan semua produk memenuhi semua persyaratan.Dalam sistem kontrol kualitas seperti itu, kesalahan terdeteksi sedini mungkin dalam proses produksi untuk menghilangkan risiko penolakan pada pemeriksaan akhir.Kami telah melakukan upaya terus menerus untuk mengurangi masalah di seluruh sistem jaminan kualitas total termasuk kontrol ketertelusuran, HDT tidak hanya memeriksa sendiri, juga melalui TPI seperti BV, SGS, DNV, ABS, MOODY, IBR, sehingga saat ini kualitas produk kami jelas. diakui oleh klien kami.
HDT memasok sejumlah besar pipa dan tabung mulus Cr-Mo Alloy, dan mengekspor lebih dari 37 negara.Tabung mulus paduan kami menjadi lebar yang digunakan dalam ketel dan pemanas.Kami dapat membantu klien membengkokkan pipa sesuai permintaan mereka.
Pipa baja karbon dapat dibagi menjadi pipa baja seamless, pipa baja lurus, pipa baja spiral, pipa baja las frekuensi tinggi dan sebagainya. Pipa baja seamless baja karbon adalah sejenis baja panjang.
Pipa memiliki bagian berongga dan digunakan dalam sejumlah besar pipa untuk transportasi fluida, seperti minyak, gas alam, gas, air dan beberapa bahan padat.
Umumnya, diameter luar pipa seamless hot-rolled lebih besar dari 32mm, ketebalan dinding 2,5-75mm, diameter luar pipa seamless cold-rolled bisa sampai 6mm, ketebalan dinding bisa sampai 0,25mm, dan diameter luar pipa berdinding tipis bisa mencapai 5mm, ketebalan dinding kurang dari 0,25mm, dan presisi cold rolling lebih tinggi daripada hot rolling.
| Karbon | Chromeun | Suhu rendah | Besi tahan karat | Rangkap | Tembaga & Perunggu | titanium | Ni-Paduan | ||
| SA178-A | SA213-T1 | SA333-Gr.1 | SA213 | TP316L | A789-S31803 | SB111-C70600 | SB338-GR.1 | SB163 | NO2200 |
| SA178-C | SA213-T11 | SA333-Gr.3 | SA249 | TP316H | A789-S32205 | SB111-C71500 | SB338-GR.2 | SB167 | NO2201 |
| SA179 | SA213-T12 | SA333-Gr.6 | SA268 | TP316Ti | A789-S32750 | SB111-C71640 | SB338-GR.5 | SB444 | NO8020 |
| SA192 | SA213-T22 | SA333-Gr.7 | SA269 | TP316LN | A789-S32760 | SB111-C68700 | SB338-GR.7 | SB514 | NO6022 |
| SA209-T1 | SA213-T5 | SA333-Gr.8 | SA376 | TP321 | A789-S32707 | SB111-C44300 | SB338-GR.9 | SB619 | N10276 |
| SA209-T1a | SA213-T9 | SA334-Gr.1 | TP304 | TP321H | A789-S32304 | SB338-GR.12 | SB622 | NO4400 | |
| SA209-T1b | SA213-T91 | SA334-Gr.3 | TP304L | TP347 | A789-S31500 | SB626 | NO6600 | ||
| SA210-A1 | SA334-Gr.6 | TP304H | TP347H | S31254 | SB674 | NO6601 | |||
| SA210-C | SA334-Gr.7 | TP304N | TP405 | 254MA | SB677 | NO6625 | |||
| SA214 | SA334-Gr.8 | TP310H | TP409 | 17-4PH | SB704 | NO690 | |||
| SA513 MT 1010 | TP310S | TP410 | 17-7PH | SB705 | NO8800 | ||||
| SA513 MT 1015 | TP309S | TP430 | 15-7PH | N1001 | NO8810 | ||||
| SA513 MT 1020 | TP317 | TP439 | N10665 | NO8811 | |||||
| TP317L | TP444 | N10675 | NO8825 | ||||||
| TP348 | TP446 | TP904L | |||||||
| TP347HFG | |||||||||
| Ukuran Tabung untuk Penukar Panas & Kondensor & Boiler | |||||||||
| Diameter luar | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Tebal Dinding mm | |||||||||
| 0,508 | 0,71 | 0,89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | inci | Berat kg/m | |||||||
| 6.35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||
| 9.53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||
| 12.7 | 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||
| 15.88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||
| 19.05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1.236 | ||
| 25.4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0,667 | 0,832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Komposisi Kimia dan Sifat Mekanik
| Nilai | Komposisi kimia% | ||||||||
| C | Ya | M N | P, S Maks | Kr | Mo | Ni Max | V | Al Maks | |
| T2 | 0,10~0,20 | 0,10~0,30 | 0,30~0,61 | 0,025 | 0,50~0,81 | 0,44~0,65 | – | – | – |
| T11 | 0,05~0,15 | 0,50~1,00 | 0,30~0,60 | 0,025 | 1,00~1,50 | 0,44~0,65 | – | – | – |
| T12 | 0,05~0,15 | Maks 0,5 | 0,30~0,61 | 0,025 | 0,80~1,25 | 0,44~0,65 | – | – | – |
| T22 | 0,05~0,15 | Maks 0,5 | 0,30~0,60 | 0,025 | 1,90~2,60 | 0,87~1,13 | – | – | – |
| T91 | 0,07~0,14 | 0,20~0,50 | 0,30~0,60 | 0,02 | 8.0~9.5 | 0,85~1,05 | 0,4 | 0,18~0,25 | 0,015 |
| T92 | 0,07~0,13 | Maks 0,5 | 0,30~0,60 | 0,02 | 8.5~9.5 | 0,30~0,60 | 0,4 | 0,15~0,25 | 0,015 |
| Nilai | Komposisi kimia% | Peralatan mekanis | |||||||
| W | B | Nb | N | T.S | Y.P | Pemanjangan | Kekerasan | ||
| T2 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T11 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T12 | – | – | – | – | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW(85HRB) | |
| T22 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW(85HRB) | |
| T91 | – | – | 0,06~0,10 | 0,03~0,07 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW(25HRB) | |
| T92 | 1,50~2,00 | 0,001~0,006 | 0,04~0,09 | 0,03~0,07 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW(25HRB) | |
ASTM A213/ASME SA213 T2, T11, T12, T22, T91, Toleransi T92
| Diameter luar | Toleransi OD | Toleransi WT | Toleransi Ovalitas | Toleransi Panjang Potong |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15% | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10% | maks, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10% | maks, 2, 41 mm | + 4, 76 mm, – 0 mm |
- Tabung Baja Paduan SA213 T11 digunakan di Industri Petrokimia
- SA213 T11 Alloy Steel Tube digunakan di Industri Kimia
- SA213 T11 Alloy Steel Tube digunakan di Industri Pembangkit Listrik Tenaga Nuklir
- SA213 T11 Alloy Steel Tube digunakan di Industri Minyak dan Gas
- Tabung Baja Paduan SA213 T11 digunakan dalam Penelitian & Pengembangan
- Tabung Baja Paduan SA213 T11 digunakan di Proyek Mega & Industri Pertahanan & Pengembangan
- Tabung Baja Paduan SA213 T11 digunakan di Industri Pulp & Kertas
Csertifikasi
