Name: Boiler Fin Tube H Type Finned Tube with Self-Cleaning Properties Flue Gas Waste Heat Recovery and Anti-Wear Features
Brand: ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
Price: 12 USD
Availability: InStock

Rumah Produk Tabung Sirip Boiler

Boiler Fin Tube H Type Finned Tube with Self-Cleaning Properties Flue Gas Waste Heat Recovery and Anti-Wear Features

Detail produk:

Tempat asal:	Jiangsu, Cina
Nama merek:	HD Boiler

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	$12,000

Kontak

Detil Deskripsi produk

Berat:	2000 kg	Bahan:	CS
OD Tabung Dasar:	25,4 mm ~ 1600mm	Ketebalan tabung dasar:	2,5 mm ~ 40 mm
Tinggi sirip:	0,5 mm ~ 20,0 mm	Ketebalan sirip:	0,5 mm ~ 3,0 mm
Pitch sirip:	5 mm ~ 25,4 mm	Length:	0
Pipa dasar:	dilas atau mulus	Efisiensi perpindahan panas:	Tinggi
Resistensi gas buang:	dirancang untuk ruang kecil	Jenis sirip:	H-fin, spiral, tabung telanjang, bergerigi
Bahan sirip:	Baja karbon, baja paduan, baja tahan karat	Kekuatan las:	Kekuatan tarik tinggi
Konduktivitas termal:	Bagus
Menyoroti:	Self-Cleaning Boiler Fin Tube , Flue Gas Waste Heat Recovery H Type Finned Tube , Anti-Wear Spiral Fin Tube

Boiler Pressure Parts CS Boiler Fin Tube Heat Exchanger for CFB Boiler Economizer

Product Description

H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width.

Key Features

High heat transfer efficiency with excellent anti-wear and anti-fouling performance
Unique groove structure on the fin surface for superior performance
Customizable designs to meet specific customer requirements
Manufactured with high-quality materials for durability and reliability

Working Principle

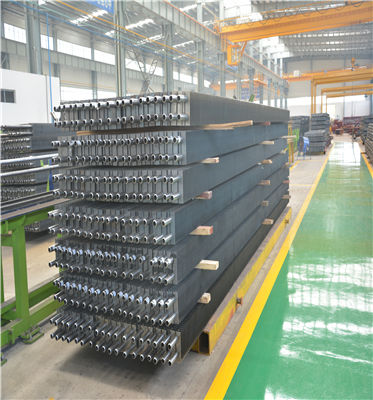

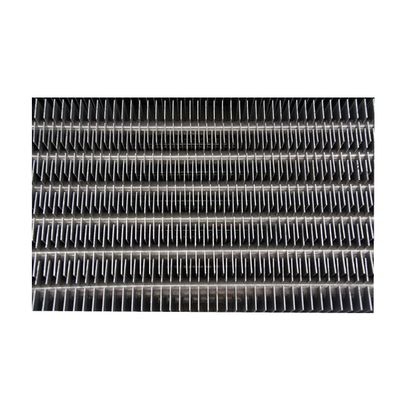

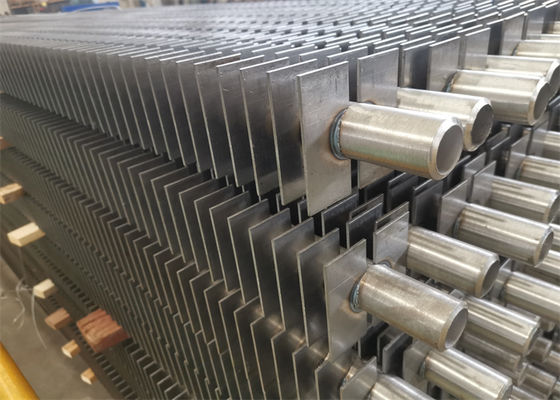

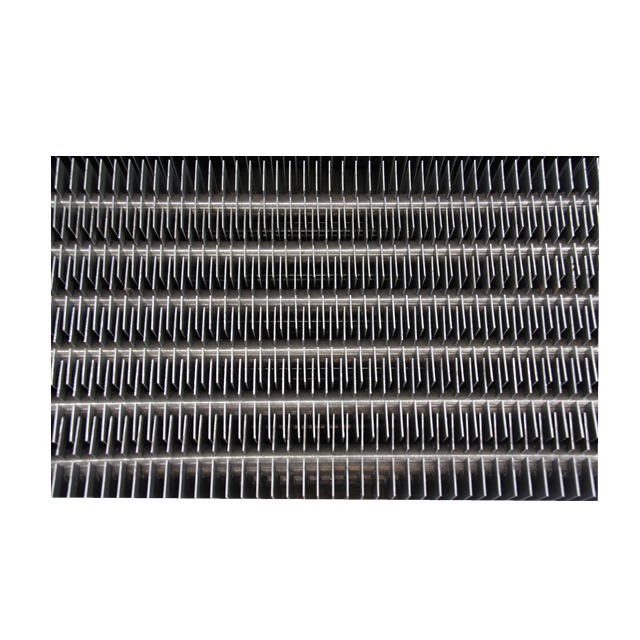

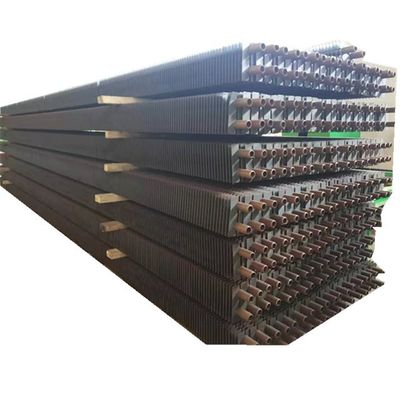

H fin tube consists of two steel circular symmetry welded on fluorescent tubes forming fins shaped like letter "H"
Widely used in utility boilers, industrial boilers, and marine power as heat exchanger components
Uses flash resistance welding processes with high fusion rate and tensile strength
Can manufacture dual tube "double H" type fin tubes for longer tube applications

Available Types

H fin (stainless), Spiral (stainless), Bare tube (stainless), Spiral (CS), H fin (ND-steel), Integrated (CS), H fin (CS), Serrated (CS)

Technical Parameters

Item	Range
Base Tube O.D (mm)	25.4 mm ~1600mm
Base Tube Thickness (mm)	2.5 mm ~40 mm
Fin Height (mm)	0.5 mm ~20.0 mm
Fin thickness(mm)	0.5 mm ~3.0 mm
Fin Pitch(mm)	5 mm ~ 25.4 mm
Material	Carbon Steel, Alloy Steel, Stainless Steel
Length	0<L≤ 12000

Product	H-fin Tube
Base Pipe	Welded or Seamless
Material	Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys
Application	H economizer, H evaporator, H superheater, H air heater and etc.

Quality Control

Impact test and Strength calculation report with applied materials information
100%NDT(non-destructive inspection) report of steel plate, tube and electrode
X-ray, γ-ray and liquid penetrant test inspection report (welding seam)
Hydraulic test report to ensure standard working pressure and safety

Label:

Kontak Person: Mrs. Sandy

Tel: 008615151590099

Faks: 86-512-5877-4453
