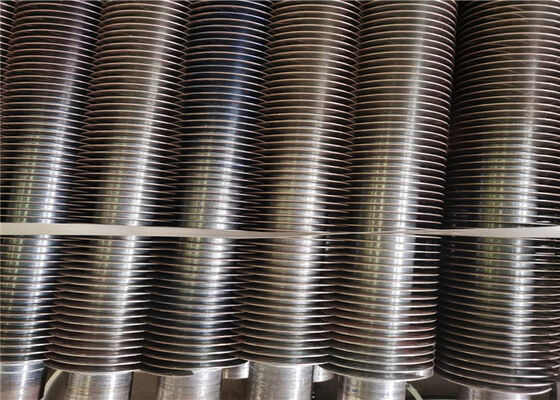

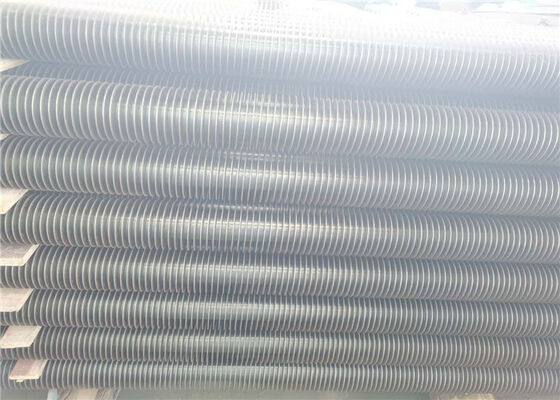

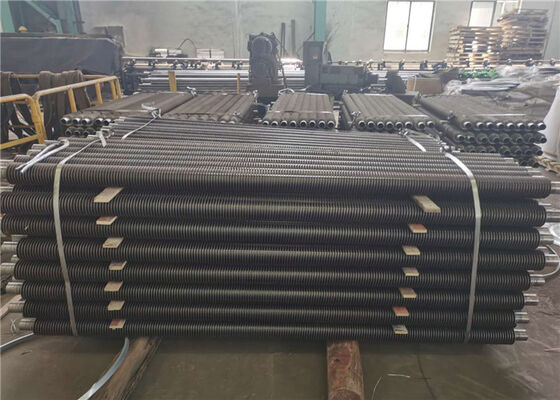

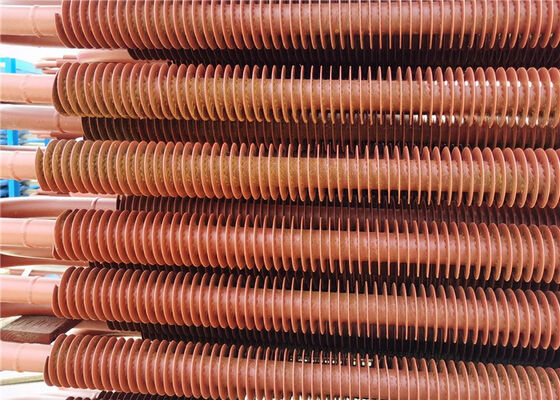

Pipa Sirip Boiler Baja Karbon Baja Corten dengan Sirip Spiral untuk Aplikasi yang Disesuaikan
Product Details
| OD Tabung Dasar: | 25,4 mm ~ 1600mm | Ketebalan tabung dasar: | 2,5 mm ~ 40 mm |
|---|---|---|---|
| Tinggi sirip: | 0,5 mm ~ 20,0 mm | Ketebalan sirip: | 0,5 mm ~ 3,0 mm |
| Pitch sirip: | 5 mm ~ 25,4 mm | Bahan: | Baja karbon, baja paduan, baja tahan karat |
| Length: | 0<L≤ 12000 | Jenis pipa dasar: | dilas atau mulus |
| Perawatan permukaan: | Dilukis | Kompatibilitas Bahan Bakar: | Biomassa, Batubara, Gas, Limbah |
| Struktur: | Tabung Air | Menyediakan kemampuan: | 500 ton per bulan |
| Laporan Uji Mesin: | Menyediakan | Paket Transportasi: | Bingkai besi |
| Jenis sirip: | Dilas, Diekstrusi, Heliks Padat, Bergerigi, Bergerigi Heliks | ||
| Menyoroti |
Tabung fin boiler baja karbon,Tabung Bersirip Baja Corten,Spiral Fin Tube yang disesuaikan |
||
Product Description
- Tabung bersirip las
- Tabung bersirip ekstrusi
- Tabung bersirip padat heliks las
- Tabung bersirip bergerigi las
- Tabung bersirip bergerigi heliks las
| Item | O.D. Pipa Dasar (mm) | Ketebalan Pipa Dasar (mm) | Tinggi Sirip (mm) | Ketebalan Sirip (mm) | Pitch Sirip (mm) |
|---|---|---|---|---|---|
| Rentang | 25.4 mm - 1600 mm | 2.5 mm - 40 mm | 0.5 mm - 20.0 mm | 0.5 mm - 3.0 mm | 5 mm - 25.4 mm |
| Produk | Tabung Sirip |
| Pipa Dasar | Dilas atau Tanpa Sambungan |
| Material | Baja karbon, baja paduan, baja tahan karat, paduan non-ferrous dan paduan nikel |
| Aplikasi | Economizer, Evaporator, Superheater, Pemanas Udara dan sistem pertukaran panas terkait |
- Laporan uji dampak dan perhitungan kekuatan dengan informasi material yang diterapkan
- 100% NDT (pemeriksaan non-destruktif) dari pelat baja, tabung, dan elektroda
- Laporan inspeksi uji sinar-X, γ-ray, dan penetran cair untuk sambungan las
- Laporan uji hidrolik untuk memastikan tekanan kerja standar dan kepatuhan keselamatan
Product Highlights
Tabung sirip HD BOILER meningkatkan efisiensi perpindahan panas dengan sirip spiral yang dilas/diekstrusi. Dapat disesuaikan dalam bahan karbon/paduan/baja tahan karat untuk pembangkit listrik & boiler industri. Keahlian lebih dari 38 tahun, kontrol kualitas bersertifikat, kapasitas bulanan 500 ton.
