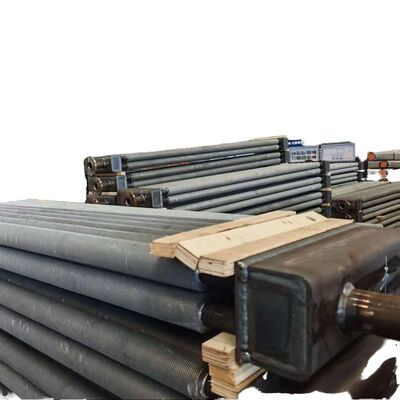

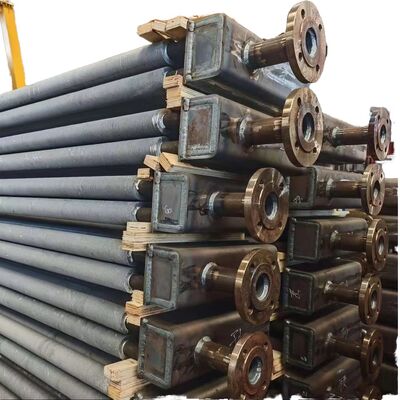

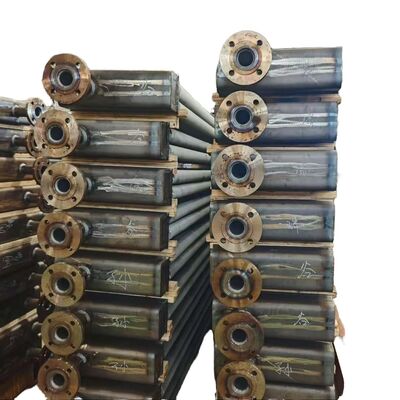

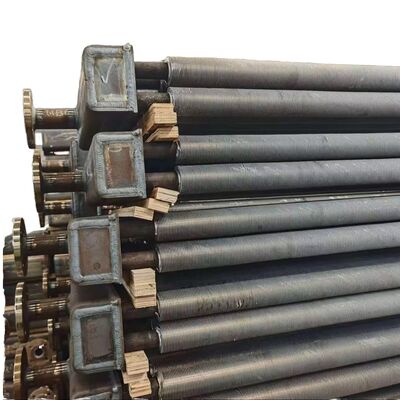

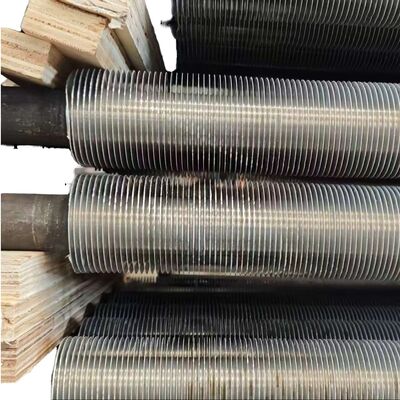

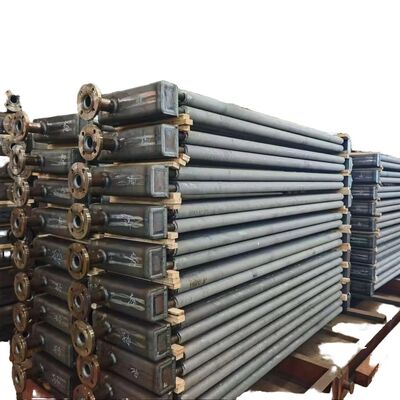

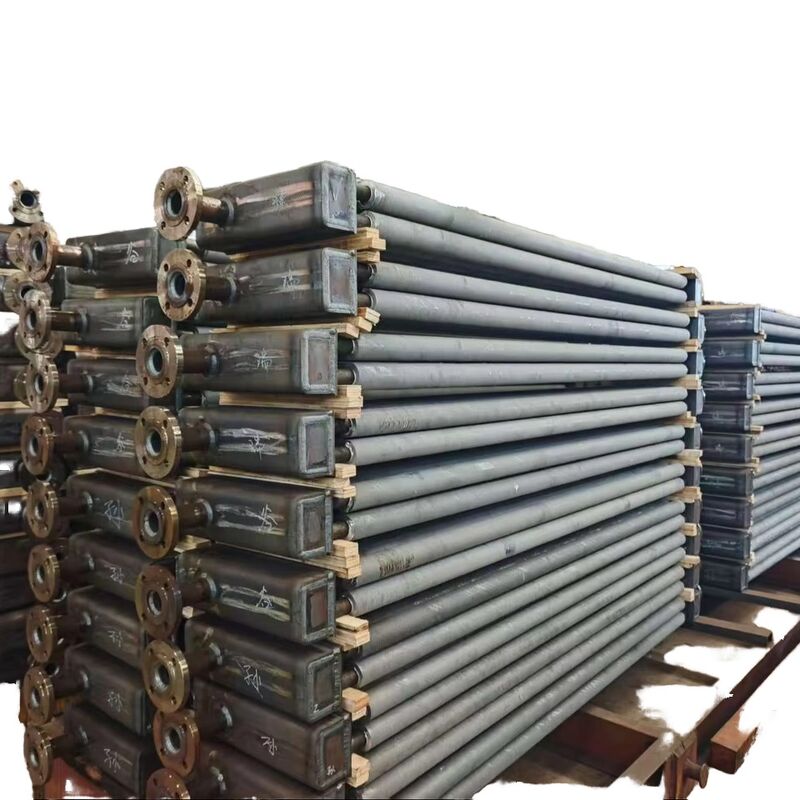

Stainless Steel Boiler Spiral Fin Tube untuk Transfer Panas Tinggi dengan Dimensi yang Dapat Dikustomisasi
Product Details
| Berat: | 5000kg | OD Tabung Dasar: | 25.4 ~ 1600 mm |
|---|---|---|---|
| Ketebalan tabung dasar: | 2,5 ~40mm | Tinggi sirip: | 0,5 ~20,0 mm |
| Ketebalan Sirip: | 0,5 ~3,0mm | Pitch sirip: | 5 ~25,4mm |
| Bahan: | Baja tahan karat, baja karbon, baja paduan | Panjang: | 0 <l <12000 mm |
| Pipa dasar: | dilas atau mulus | Tekanan: | Tekanan Rendah/Tinggi |
| Perawatan Permukaan: | Dilukis | Proses peleburan: | EF+LF+VD |
| Ut Standar: | ASTM A388 atau EN10228 | Berat min: | 10 Ton |
| Berat Maks: | 1000 ton | ||
| Menyoroti |
Tabung Sirip Spiral Boiler Stainless Steel,Tabung Bersirip Spiral Perpindahan Panas Tinggi,Tabung Bersirip H Dimensi yang Dapat Disesuaikan |
||
Product Description
| Artikel | O.D tabung dasar (mm) | Ketebalan tabung dasar (mm) | Tinggi sirip (mm) | Ketebalan sirip (mm) | Jarak sirip (mm) |
|---|---|---|---|---|---|
| Jangkauan | 25.4 ~ 1600mm | 2.5 ~ 40 mm | 0.5 ~ 20.0 mm | 0.5 ~ 3,0 mm | 5 ~ 25,4 mm |
| Bahan | Baja karbon, baja paduan, baja tahan karat | ||||
| Panjang | 0 < L < 12000mm | ||||
| Produk | Tabung H-fin |
|---|---|
| Pipa dasar | Selang atau tanpa jahitan |
| Bahan | Baja karbon, baja paduan, baja tahan karat, paduan non-ferrous dan paduan nikel |
| Aplikasi | H economizer, H evaporator, H superheater, H air heater dan sistem terkait |
| Deskripsi | Penjimat boiler |
|---|---|
| Bahan | Baja paduan, baja karbon, SA210C, SA213T22 dan kelas terkait |
| Standar Materi | ASTM, EN, ISO, dan standar internasional yang setara |
| Dimensi | Disesuaikan dengan kebutuhan aplikasi |
| Berat badan | Minimal: 10 ton. Maksimal: 1000 ton. |
| Proses peleburan | EF + LF + VD |
| Proses Produksi | Bahan → Ingot → Hot/Cold-Rolling → Pengolahan panas (Normalizing + tempering) → Inspeksi → Pengolahan kasar → UT → Pengolahan panas sekunder → Pengolahan akhir → Pemeriksaan akhir |
| Standar UT | ASTM A388, EN10228, dan standar setara |
- Laporan tes benturan dan perhitungan kekuatan dengan dokumentasi material yang diterapkan yang komprehensif
- 100% laporan NDT (inspeksi non-destruktif) untuk bahan pelat, tabung, dan elektroda baja
- Laporan pemeriksaan sinar-X, sinar γ, dan penetrant cair yang komprehensif untuk semua lapisan las
- Laporan uji hidrolik untuk memvalidasi tekanan kerja standar dan memastikan keselamatan operasi
- Semua proses manufaktur ketat mematuhi persyaratan sistem mutu ISO dan CE
- Setiap prosedur produksi dilakukan oleh tenaga kerja profesional yang terampil dengan pengawasan QC khusus
- Informasi produk yang komprehensif yang dapat diakses melalui sistem manajemen yang efisien
- Program pelatihan teknis yang disesuaikan dengan kebutuhan pelanggan
- Komitmen penggantian berbasis garansi
- Jaminan pasokan suku cadang pemeliharaan
- Program panggilan kembali dan kunjungan pelanggan reguler
- Tanggapan cepat terhadap keluhan pelanggan dan permintaan konsultasi
Product Highlights
Tabung boiler sirip H yang tahan lama untuk perpindahan panas yang unggul dalam aplikasi industri/tenaga listrik. Ukuran khusus, baja paduan/tahan karat, bersertifikat (ISO/ASME), dengan inspeksi video dan pengepakan layak laut.
