Pipa baja karbon siku ASTM A234 WPB-S LR SR DN300 SCH120 BW SMLS B16.9 permukaan hitam
Product Details
| Bahan: | DN300 / 200 SCH120 B16.9 | Aplikasi: | boiler, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan fluida |
|---|---|---|---|
| Ukuran: | <i>OD: 1/2" NB - 48" NB.</i> <b>OD: 1/2 "NB - 48" NB.</b> <i>WT: SCH 10S - SCH X | standar: | ANSI B16.9, MSS SP 43 |

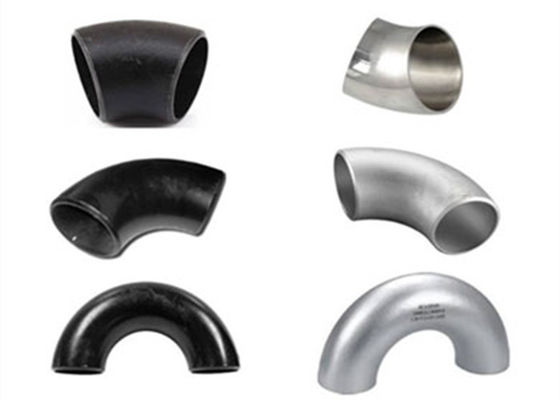

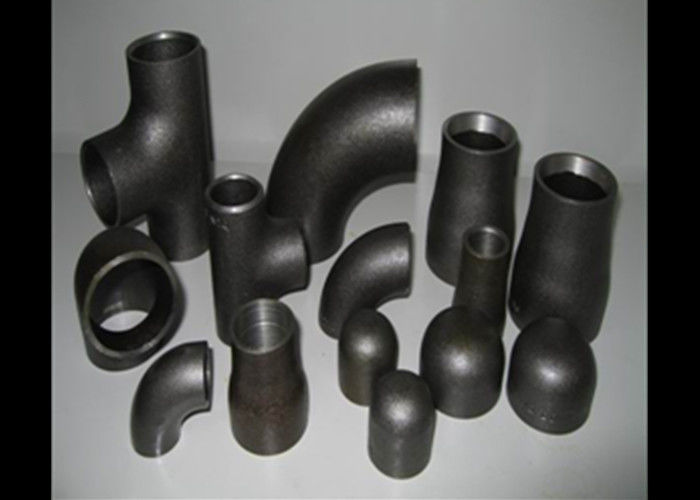

| Tipe: | Mulus / ERW / Dilas / Pabrikasi / Ditempa | Bentuk: | Siku Dalam Radius Panjang & Pendek Dalam 45 Deg, 90 Deg, 180 Deg, Equal, Unequal Tee & Barre |
| Menyoroti |
siku baja dupleks,butt weld elbow |
||
Product Description

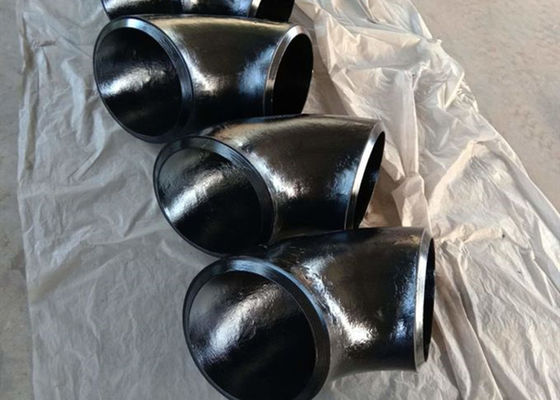

Pemasangan Baja Karbon, ASTM A234 WPB-S, 90DEG ELBOW LR SR, DN300 SCH120 BW SMLS B16.9, Permukaan Hitam
Pemasangan Pipa Baja Karbon - Radius Panjang Siku 90
Standar
| Nominal Ukuran pipa |
Di luar Diameter |
Dalam Diameter |
Dinding Ketebalan |
Pusat Untuk mengakhiri |
Pipa Susunan acara |
Bobot Pound |
| 1/2 | 0,84 | 0,622 | 0,109 | 1.5 | 40 | 0,16 |
| 3/4 | 1,05 | 0,824 | 0,113 | 1.5 | 40 | 0,17 |
| 1 | 1.32 | 1,049 | 0,133 | 1.5 | 40 | 0,4 |
| 1 1/4 | 1.66 | 1.38 | 0,14 | 1.88 | 40 | 0,55 |
| 1 1/2 | 1.9 | 1.61 | 0,145 | 2.25 | 40 | 0.8 |
| 2 | 2.38 | 2.07 | 0,154 | 3 | 40 | 1.6 |
| 2 1/2 | 2.88 | 2.47 | 0,203 | 3,75 | 40 | 3.2 |
| 3 | 3.5 | 3.07 | 0,216 | 4.5 | 40 | 4.8 |
| 3 1/2 | 4 | 3.55 | 0,226 | 5.25 | 40 | 6.6 |
| 4 | 4.5 | 4.03 | 0,237 | 6 | 40 | 8.9 |
| 5 | 5.56 | 5.0 | 0,258 | 7.5 | 40 | 15.1 |
| 6 | 6.62 | 6.07 | 0,28 | 9 | 40 | 24 |
| 8 | 8.62 | 7.98 | 0,322 | 12 | 40 | 47.8 |
| 10 | 10.75 | 10.02 | 0,365 | 15 | 40 | 83.4 |
| 12 | 12.75 | 12 | 0,375 | 18 | * | 123 |
| 14 | 14 | 13.25 | 0,375 | 21 | 30 | 155 |
| 16 | 16 | 15.25 | 0,375 | 24 | 30 | 206 |
| 18 | 18 | 17.25 | 0,375 | 27 | * | 262 |
| 20 | 20 | 19.25 | 0,375 | 30 | 20 | 324 |
| 24 | 24 | 23.25 | 0,375 | 36 | 20 | 466 |
| 30 | 30 | 29.25 | 0,375 | 45 | * | 720 |
| 36 | 36 | 35.25 | 0,375 | 54 | * | 1,039 |
| 42 | 42 | 41.25 | 0,375 | 63 | * | 1.420 |
| 48 | 48 | 47.25 | 0,375 | 72 | * | 2.000 |
Sangat Kuat
| Nominal Ukuran pipa |
Di luar Diameter |
Dalam Diameter |
Dinding Ketebalan |
Pusat Untuk mengakhiri |
Pipa Susunan acara |
Bobot Pound |
| 1/2 | 0,84 | 0,546 | 0,147 | 1.5 | 80 | 0,26 |
| 3/4 | 1,05 | 0,742 | 0,154 | 1.5 | 80 | 0,29 |
| 1 | 1.32 | 0,957 | 0,179 | 1.5 | 80 | 0,48 |
| 1 1/4 | 1.66 | 1.27 | 0,191 | 1.88 | 80 | 0,79 |
| 1 1/2 | 1.9 | 1.5 | 0,2 | 2.25 | 80 | 1.2 |
| 2 | 2.37 | 1.93 | 0,218 | 3 | 80 | 2.1 |
| 2 1/2 | 2.88 | 2.32 | 0,276 | 3,75 | 80 | 3.8 |
| 3 | 3.5 | 2.9 | 0,3 | 4.5 | 80 | 6.3 |
| 3 1/2 | 4 | 3.36 | 0,318 | 5.25 | 80 | 8.6 |
| 4 | 4.5 | 3.82 | 0,337 | 6 | 80 | 12.5 |
| 5 | 5.56 | 4.81 | 0,375 | 7.5 | 80 | 21.2 |
| 6 | 6.63 | 5.76 | 0,432 | 9 | 80 | 34.4 |
| 8 | 8.63 | 7.63 | 0,5 | 12 | 80 | 71.3 |
| 10 | 10.75 | 9.75 | 0,5 | 15 | 60 | 111 |
| 12 | 12.75 | 11.75 | 0,5 | 18 | * | 158 |
| 14 | 14 | 13 | 0,5 | 21 | * | 201 |
| 16 | 16 | 15 | 0,5 | 24 | 40 | 270 |
| 18 | 18 | 17 | 0,5 | 27 | * | 348 |
| 20 | 20 | 19 | 0,5 | 30 | 30 | 422 |
| 24 | 24 | 23 | 0,5 | 36 | * | 604 |
| 30 | 30 | 29 | 0,5 | 45 | 20 | 997 |
| 36 | 36 | 35 | 0,5 | 54 | 20 | 1,380 |
| 42 | 42 | 41 | 0,5 | 63 | * | 1,880 |
| 48 | 48 | 47 | 0,5 | 72 | * | 2,502 |
Berbagai produk:
Ukuran: 1/8 "NB TO 48" NB IN
Jadwal: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Jenis: Mulus / ERW / Dilas / Pabrikasi / Ditempa
Bentuk: Peredam Eksentrik, Peredam Konsentris
Material
Peredam Stainless Steel - Peredam SS
ASTM A403 WP Gr. ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer - Reducer CS
ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Peredam Baja Karbon Suhu Rendah - Peredam LTCS
ASTM A420 WPL3 / A420WPL6
Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. ASTM / ASME A / SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Peredam Baja Duplex
ASTM A 815 UNS NO S 31803, S 32205.
Peredam Paduan Nikel
Standar
- ASTM / ASME SB 336.
- UNS 10276 (Peredam HASTELLOY C 276)
- UNS 2200 (Reducer NICKEL 200),
- UNS 2201 (Reducer NICKEL 201),
- UNS 4400 (Reducer MONEL 400),
- UNS 8020 (ALLOY 20 Reducer),
- UNS 8825 (Peredam INCONEL 825),
- UNS 6600 (Peredam INCONEL 600),
- UNS 6601 (Peredam INCONEL 601),
- UNS 6625 (Peredam INCONEL 625),
Layanan Nilai Tambah
- Hot Dip Galvanizing
- Lapisan Epoxy
