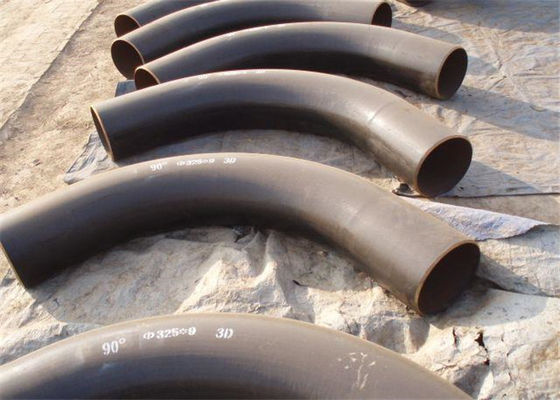

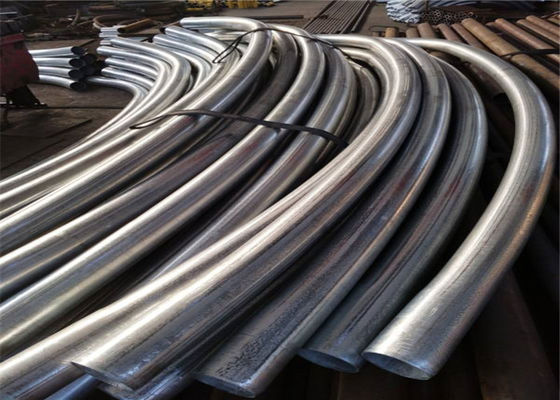

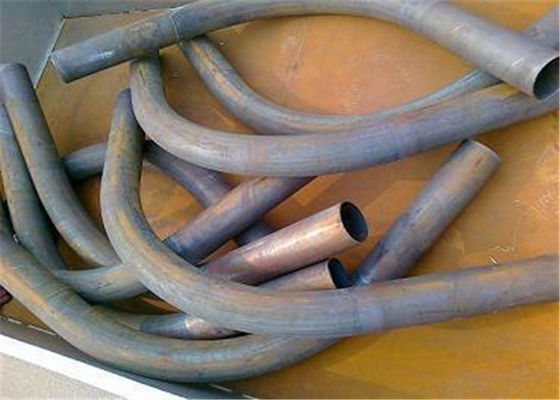

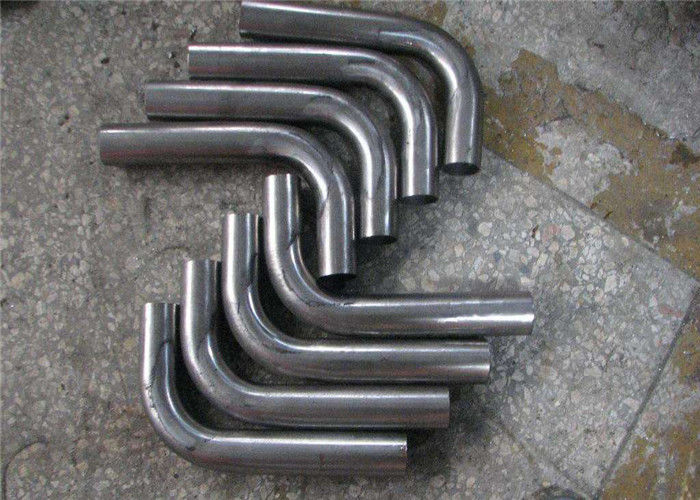

Sanitary 1-1 / 2 "2.5D Carbon Forged Steel Elbow tipe U tabung boiler
Product Details
| Bahan: | Baja karbon | Aplikasi: | boiler, energi, industri petrokimia, pertambangan, makanan, kertas, gas dan fluida |
|---|---|---|---|
| Ukuran: | 2 '', 3 '', 4 '', 6 '', 8 '' | Radius: | 1.5D, 2.5D, 5D, 3D |
| Ketebalan: | Disesuaikan | Pipa khusus: | Tabung U Type Boiler |
| Menyoroti |
Siku Baja Tempa 1-1 / 2 "Sanitasi,Siku Baja Tempa Karbon 2.5D,Siku Baja Tempa Karbon 2.5D Sanitasi |
||
Product Description
ASTM A234 WPB S LR Tabung Boiler Baja Siku / Siku Baja Tempa Karbon
informasi produk
Standar
| Nominal Ukuran pipa |
Di luar Diameter |
Dalam Diameter |
Dinding Ketebalan |
Pusat Untuk mengakhiri |
Pipa Susunan acara |
Bobot Pound |
| 1/2 | 0.84 | 0,622 | 0.109 | 0.62 | 40 | 0,09 |
| 3/4 | 1.05 | 0.824 | 0.113 | 0,75 | 40 | 0.1 |
| 1 | 1.32 | 1.05 | 0.133 | 0.88 | 40 | 0.22 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1 | 40 | 0.33 |
| 1 1/2 | 1.9 | 1.61 | 0,145 | 1.12 | 40 | 0.43 |
| 2 | 2.38 | 2.07 | 0.154 | 1.38 | 40 | 0.85 |
| 2 1/2 | 2.88 | 2.47 | 0.203 | 1.75 | 40 | 1.7 |
| 3 | 3.5 | 3.07 | 0.216 | 2 | 40 | 2.5 |
| 3 1/2 | 4 | 3.55 | 0.226 | 2.25 | 40 | 3.4 |
| 4 | 4.5 | 4.03 | 0,237 | 2.5 | 40 | 4.5 |
| 5 | 5.56 | 5.05 | 0.258 | 3.12 | 40 | 7.5 |
| 6 | 6.62 | 6.06 | 0.28 | 3.75 | 40 | 11.7 |
| 8 | 8.62 | 7.98 | 0,322 | 5 | 40 | 23.3 |
| 10 | 10.75 | 10.02 | 0,365 | 6.25 | 40 | 40.9 |
| 12 | 12.75 | 12 | 0,375 | 7.5 | * | 61.4 |
| 14 | 14 | 13.25 | 0,375 | 8.75 | 30 | 78.1 |
| 16 | 16 | 15.25 | 0,375 | 10 | 30 | 101 |
| 18 | 18 | 17.25 | 0,375 | 11.25 | * | 128 |
| 20 | 20 | 19.25 | 0,375 | 12.5 | 20 | 159 |
| 24 | 24 | 23.25 | 0,375 | 15 | 20 | 231 |
| 30 | 30 | 29.25 | 0,375 | 18.5 | * | 358 |
| 36 | 36 | 35.25 | 0,375 | 22.25 | * | 518 |
| 42 | 42 | 41.25 | 0,375 | 26 | * | 707 |
| 48 | 48 | 47.25 | 0,375 | 29.88 | * | 1.000 |
Ekstra Kuat
| Nominal Ukuran pipa |
Di luar Diameter |
Dalam Diameter |
Dinding Ketebalan |
Pusat Untuk mengakhiri |
Pipa Susunan acara |
Bobot Pound |
| 1/2 | 0.84 | 0,546 | 0.147 | 0.62 | 80 | 0.15 |
| 3/4 | 1.05 | 0.742 | 0.154 | 0,75 | 80 | 0.16 |
| 1 | 1.32 | 0,957 | 0.179 | 0.88 | 80 | 0.28 |
| 1 1/4 | 1.66 | 1.28 | 0.191 | 1 | 80 | 0.45 |
| 1 1/2 | 1.9 | 1.5 | 0.2 | 1.12 | 80 | 0.61 |
| 2 | 2.38 | 1.94 | 0.218 | 1.38 | 80 | 1.2 |
| 2 1/2 | 2.88 | 2.32 | 0.276 | 1.75 | 80 | 2 |
| 3 | 3.5 | 2.9 | 0.3 | 2 | 80 | 3.3 |
| 3 1/2 | 4 | 3.36 | 0,318 | 2.25 | 80 | 4.5 |
| 4 | 4.5 | 3.83 | 0.337 | 2.5 | 80 | 6.2 |
| 5 | 5.56 | 4.81 | 0,375 | 3.12 | 80 | 10.5 |
| 6 | 6.62 | 5.76 | 0.432 | 3.75 | 80 | 17 |
| 8 | 8.62 | 7.63 | 0,5 | 5 | 80 | 34.3 |
| 10 | 10.75 | 9.75 | 0,5 | 6.25 | 60 | 53.5 |
| 12 | 12.75 | 11.75 | 0,5 | 7.5 | * | 77.6 |
| 14 | 14 | 13 | 0,5 | 8.75 | * | 100 |
| 16 | 16 | 15 | 0,5 | 10 | 40 | 134 |
| 18 | 18 | 17 | 0,5 | 11.25 | * | 170 |
| 20 | 20 | 19 | 0,5 | 12.5 | 30 | 209 |
| 24 | 24 | 23 | 0,5 | 15 | * | 302 |
| 30 | 30 | 29 | 0,5 | 18.5 | 20 | 475.1 |
| 36 | 36 | 35 | 0,5 | 22.25 | 20 | 686.1 |
| 42 | 42 | 41 | 0,5 | 26 | * | 936.1 |
| 48 | 48 | 47 | 0,5 | 29.88 | * | 1250 |
Berbagai produk:
Ukuran: 1/8 "NB SAMPAI 100" NB
Jadwal: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Jenis: Seamless / ERW / Welded / Fabrikasi / Ditempa
Formulir: Peredam Eksentrik, Peredam Konsentris
Bahan
Peredam Baja Tahan Karat - Peredam SS
ASTM A403 WP Gr.304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Peredam Baja Karbon - Peredam CS
ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Peredam Baja Karbon Suhu Rendah - Peredam LTCS
ASTM A420 WPL3 / A420WPL6
Peredam Baja Paduan - Peredam AS
ASTM / ASME A / SA 234 Gr.WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Peredam Baja Duplex
ASTM A 815 UNS NO S 31803, S 32205.
Peredam Paduan Nikel
Standar
- ASTM / ASME SB 336.
- UNS 10276 (Peredam HASTELLOY C 276)
- UNS 2200 (Peredam NIKEL 200),
- UNS 2201 (Peredam NIKEL 201),
- UNS 4400 (Peredam MONEL 400),
- UNS 8020 (ALLOY 20 Reducer),
- UNS 8825 (Peredam INCONEL 825),
- UNS 6600 (Peredam INCONEL 600),
- UNS 6601 (Peredam INCONEL 601),
- UNS 6625 (Peredam INCONEL 625),
Layanan Nilai Tambah
- Galvanisasi Hot Dip
- Lapisan Epoksi
Sertifikat ujian
Sertifikat Uji Pabrik sesuai EN 10204 / 3.1B
